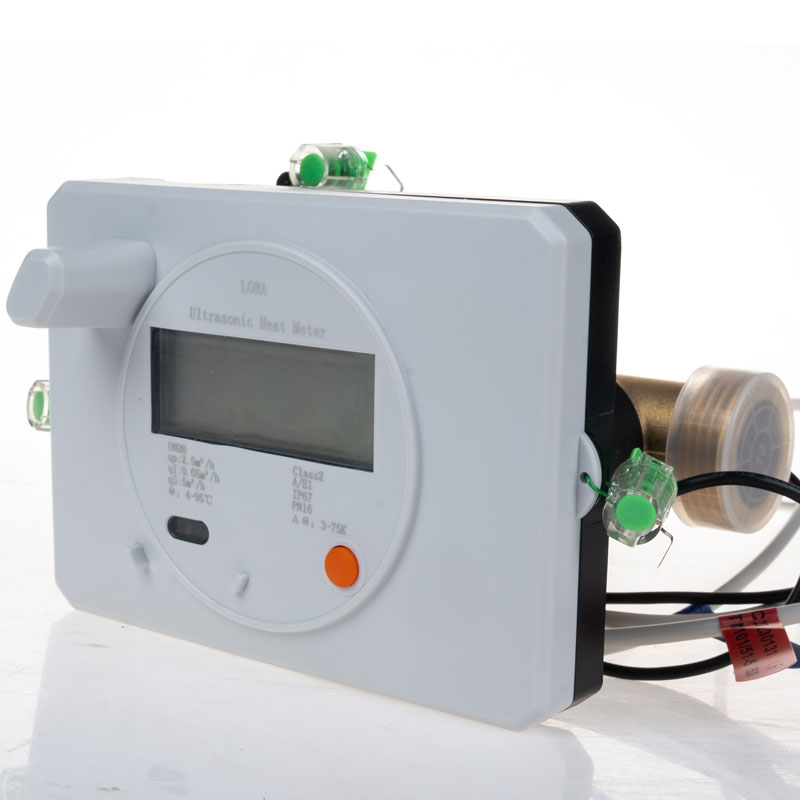

LORA communication
Uses LORA spread spectrum technology for wireless transmission, with long transmission distance, penetration ability, and stable signal transmission.
Data storage
Stores data for hourly, daily, monthly periods, including cumulative heat, cumulative cold, cumulative flow, working time, etc., and data can be stored for a long time after power outage.
Intelligent monitoring
Realizes real-time sound distance measurement, transducer anomaly detection, low battery voltage alarm, air pipe alarm, temperature alarm, etc.
Remote valve control
Can remotely monitor valve anomalies and report valve action data to the cloud platform. The valve can be automatically closed immediately when the user is in arrears. Regular valve opening and closing prevents rust and locking, and the opening and closing period can be set.
Ultra-low power consumption
Uses low-power design, with built-in large-capacity battery, and battery life exceeds 6 years.
Multiple angle installation
Can be installed horizontally or vertically, and can be installed on the inlet or return pipeline according to user needs.
Technical support
Can be protocol docking, interface docking, and meet the needs of different platforms.
OTA remote upgrade
All devices support remote online upgrade without the need to replace, disassemble, or approach the meter.
Convenient payment
Supports mobile payment such as WeChat public account, Alipay, mini program, etc., and provides information such as usage, balance, payment, etc.
Nominal Diameter |
15 |
20 |
25 |
32 |
40 |
|
Dimension |
L |
110 |
130 |
160 |
180 |
200 |
W |
87 |
87 |
87 |
85 |
85 |
|
H |
1011 |
101 |
101 |
125 |
130 |
|
Max flow (m3/h) |
3 |
5 |
7 |
12 |
20 |
|
Norm flow(m3/h) |
1.5 |
2.5 |
3.5 |
6 |
10 |
|
Min flow(m3/h) |
0.03 |
0.05 |
0.07 |
0.12 |
0.2 |
|
Max flow reading |
999999.99(m3) |
|||||
Max heat reading |
99999999(KW·h) |
|||||
Power supply |
3.6VDC |
|||||
Battery life |
>6 years ( Lithium battery) |
|||||
Accuracy class |
Class 2 |
|||||
Communication mode |
Infrared interface , NB-IoT/LoRa/M-Bus/RS-485 |
|||||
Press loss |
≤ 0.025 Mpa ( under normal flow) |
|||||
IP class |
IP 68 |
|||||
Temperature range |
(0--95) ℃ |
|||||
Temperature difference range |
(3--60) k |
|||||
Starting temperature difference |
0.01k |
|||||
Temperature sensor |
Pt 1000 |
|||||
Ambient temperature |
+5℃ -- +55℃ |
|||||
Ambient level |
Level A |
|||||
Installation |
Horizontal/ vertical installation |
|||||
Monitor |
8 digits |
|||||
Length of temperature sensor |
1.5m |
|||||
Working current |
45uA |
|||||
Data storage |
Store historical data up to last 24 months |
