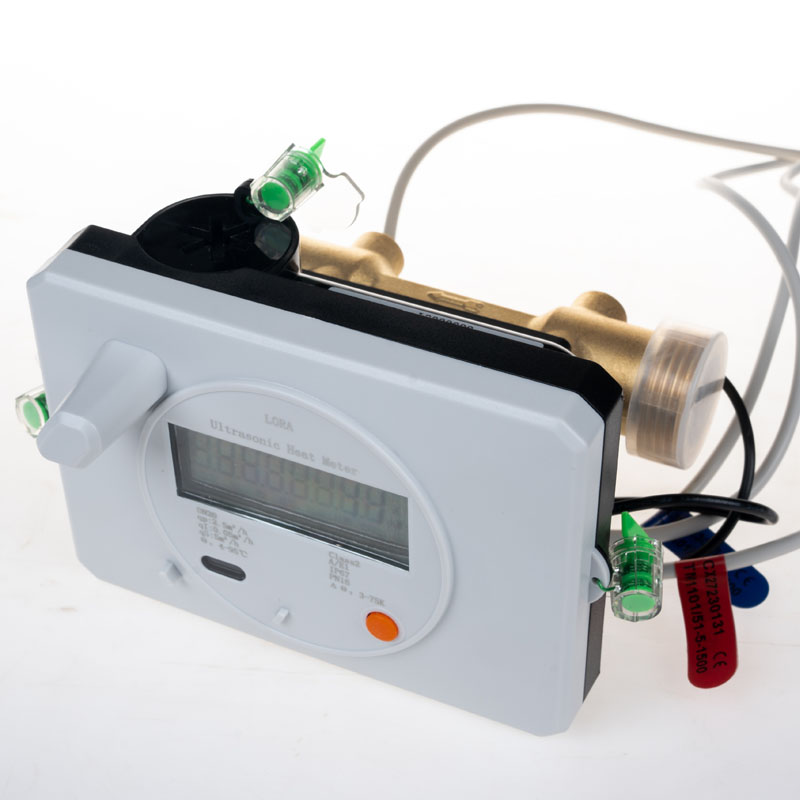

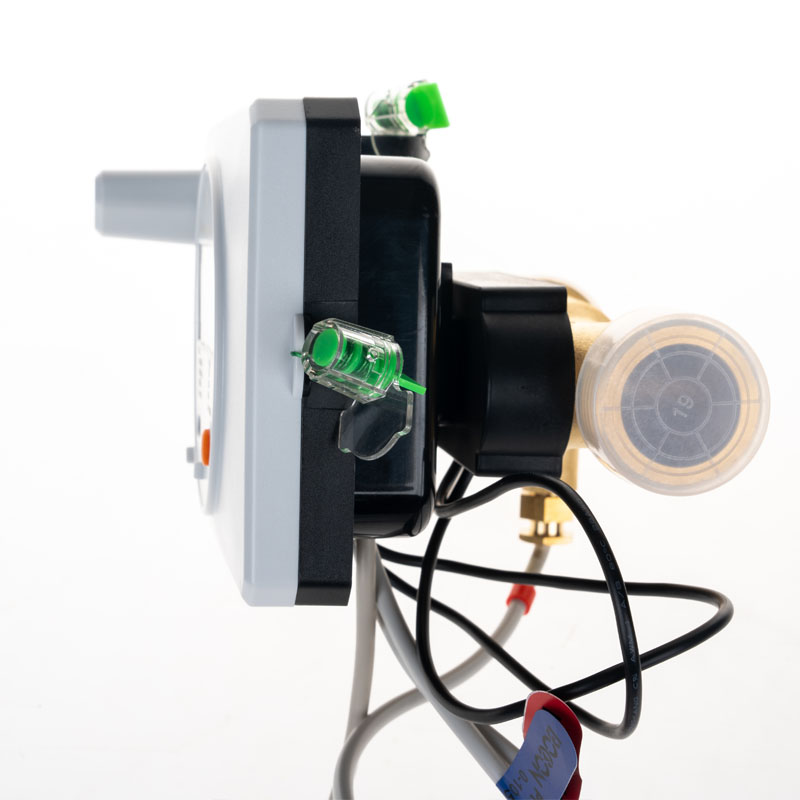

Smart Ultrasoinc Heat Meter for Heating and Cooling System
  • Smart Ultrasoinc Heat Meter for Heating and Cooling SystemSmart Ultrasoinc Heat Meter for Heating and Cooling System
  • Smart Ultrasoinc Heat Meter for Heating and Cooling SystemSmart Ultrasoinc Heat Meter for Heating and Cooling System
  • Smart Ultrasoinc Heat Meter for Heating and Cooling SystemSmart Ultrasoinc Heat Meter for Heating and Cooling System
  • Smart Ultrasoinc Heat Meter for Heating and Cooling SystemSmart Ultrasoinc Heat Meter for Heating and Cooling System
  • Smart Ultrasoinc Heat Meter for Heating and Cooling SystemSmart Ultrasoinc Heat Meter for Heating and Cooling System
  • Smart Ultrasoinc Heat Meter for Heating and Cooling SystemSmart Ultrasoinc Heat Meter for Heating and Cooling System
  • Smart Ultrasoinc Heat Meter for Heating and Cooling SystemSmart Ultrasoinc Heat Meter for Heating and Cooling System
  • Smart Ultrasoinc Heat Meter for Heating and Cooling SystemSmart Ultrasoinc Heat Meter for Heating and Cooling System
  • Smart Ultrasoinc Heat Meter for Heating and Cooling SystemSmart Ultrasoinc Heat Meter for Heating and Cooling System
  • Smart Ultrasoinc Heat Meter for Heating and Cooling SystemSmart Ultrasoinc Heat Meter for Heating and Cooling System

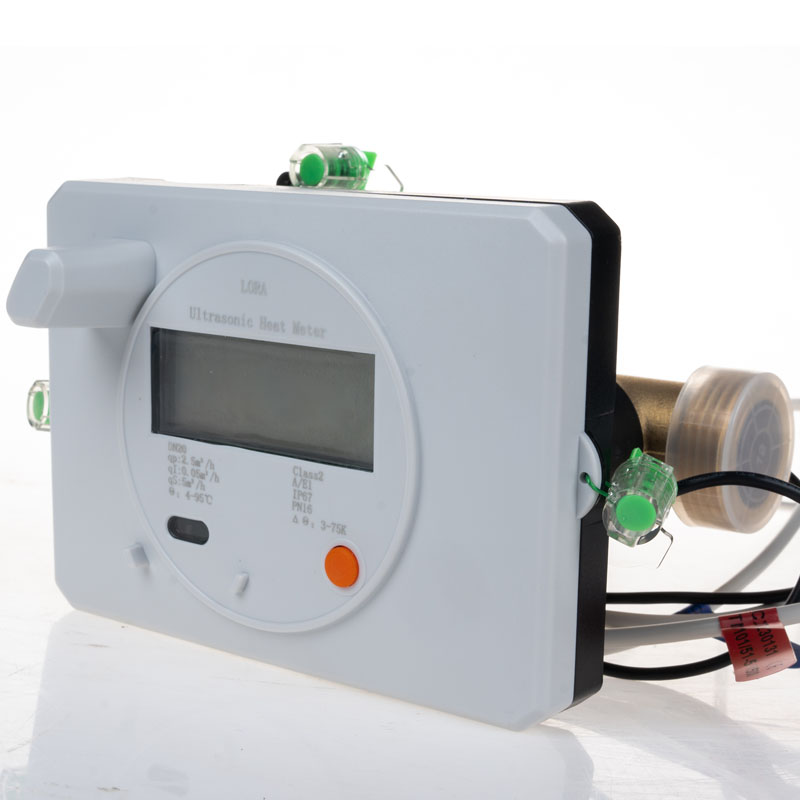

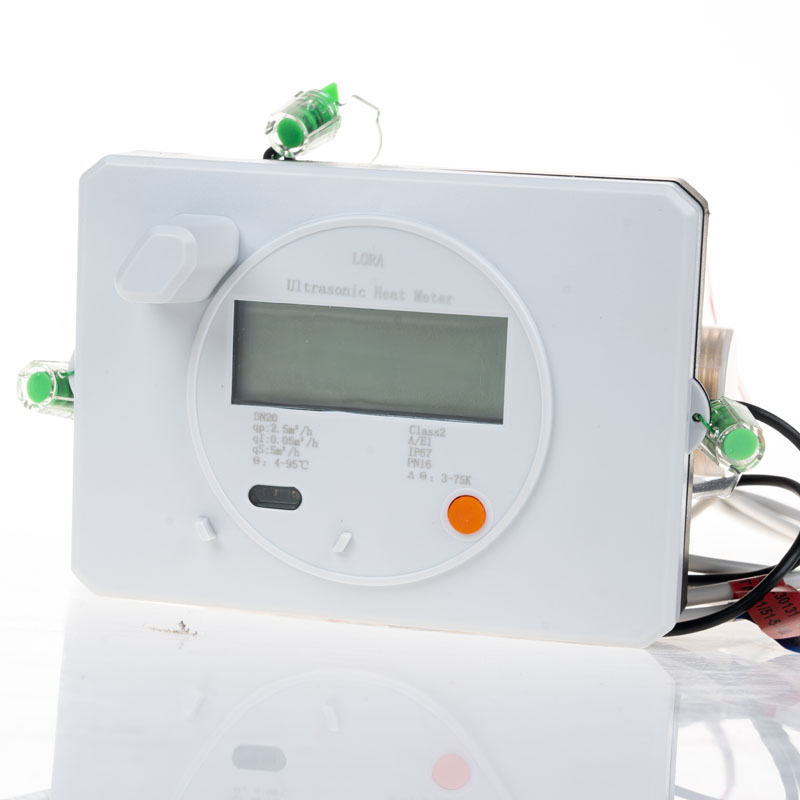

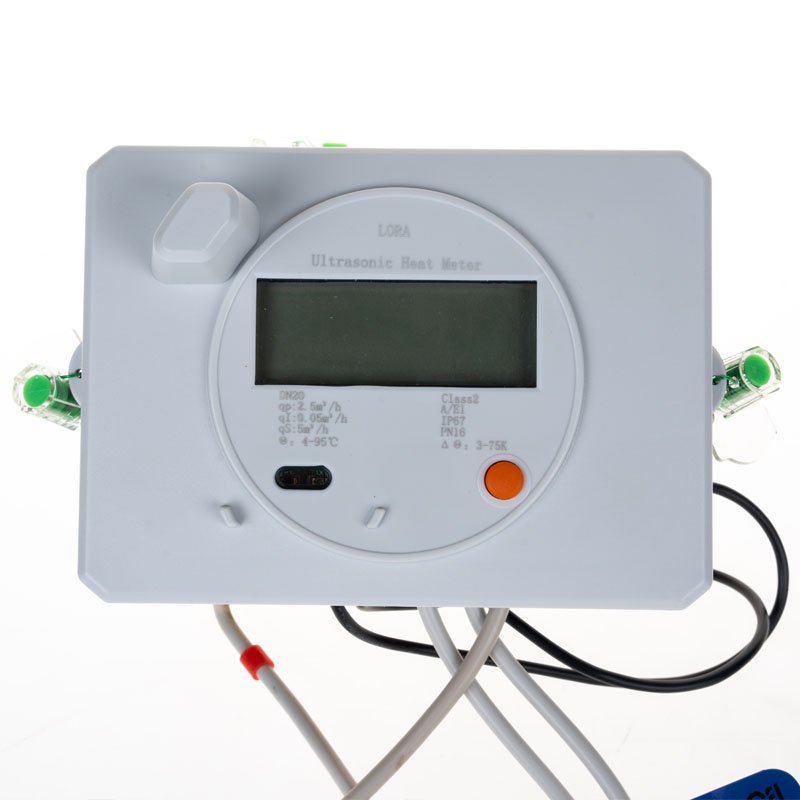

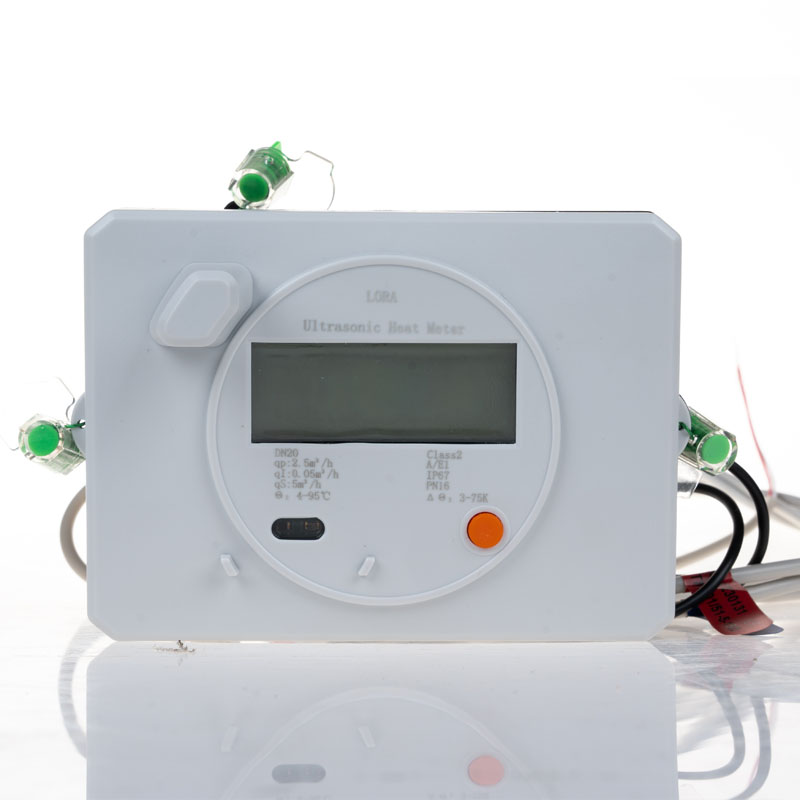

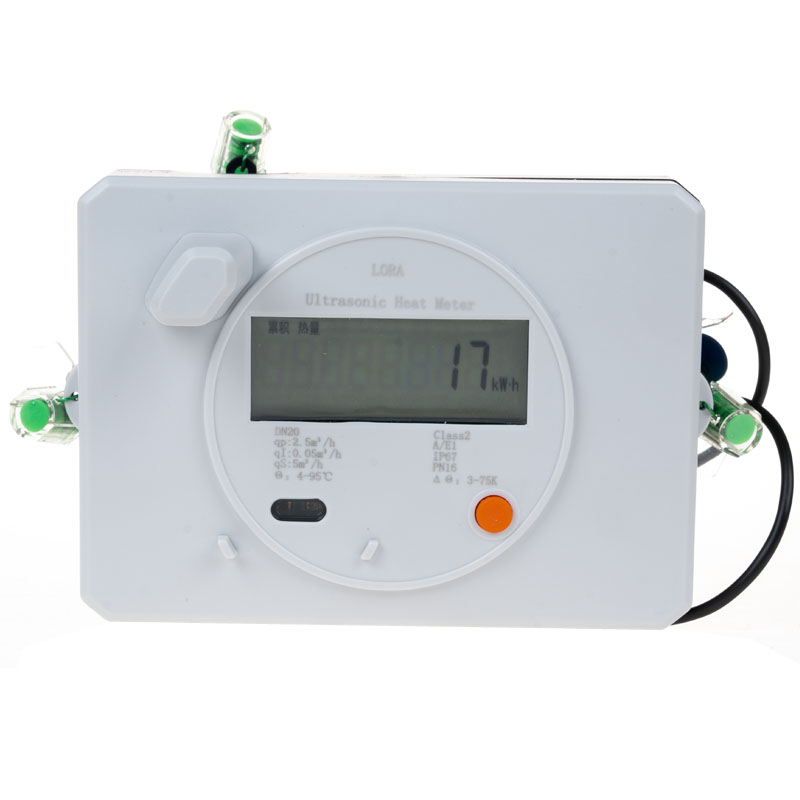

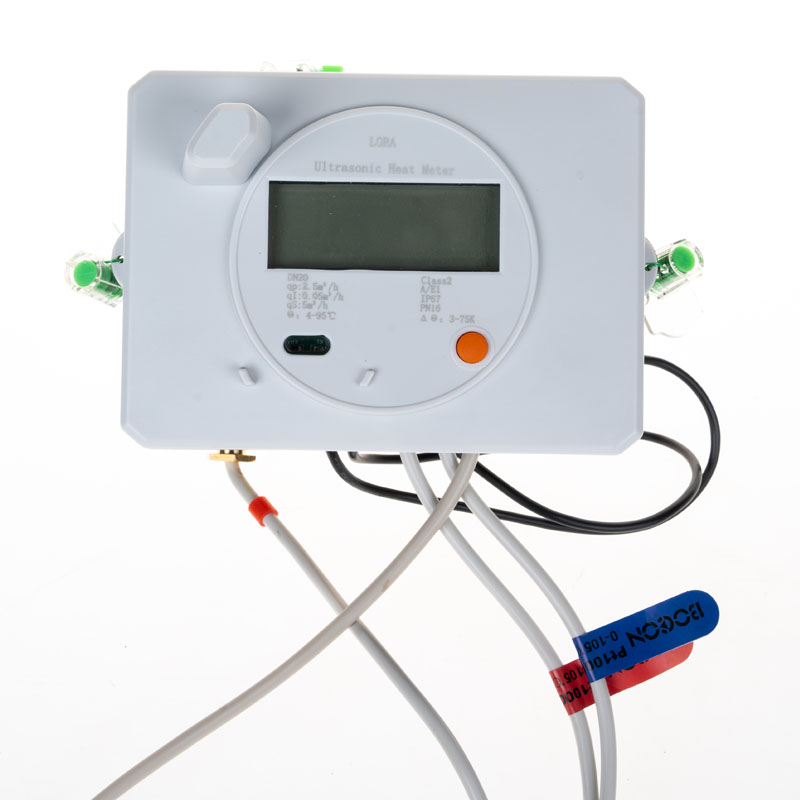

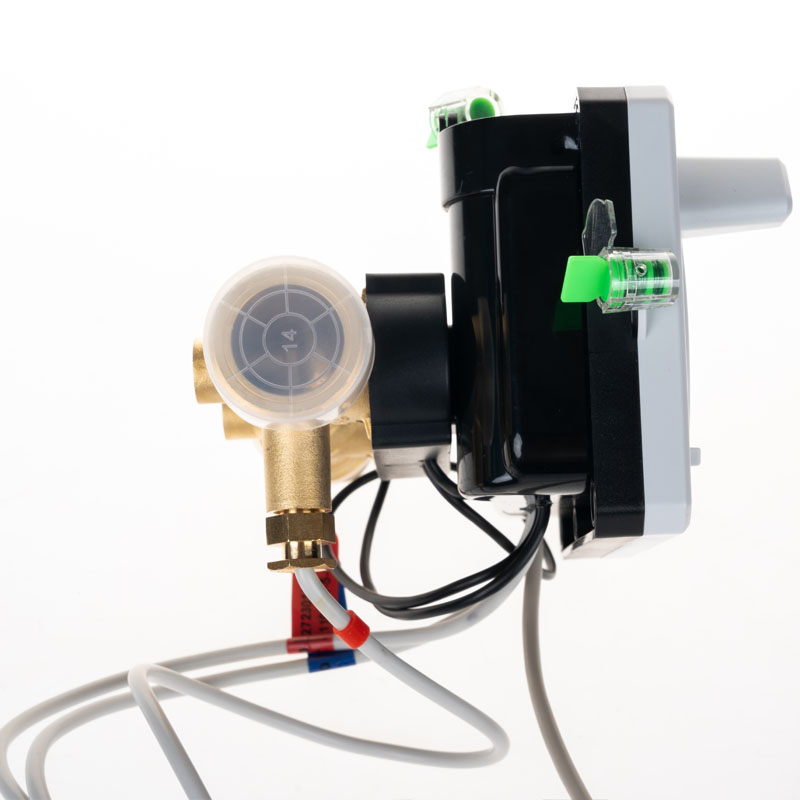

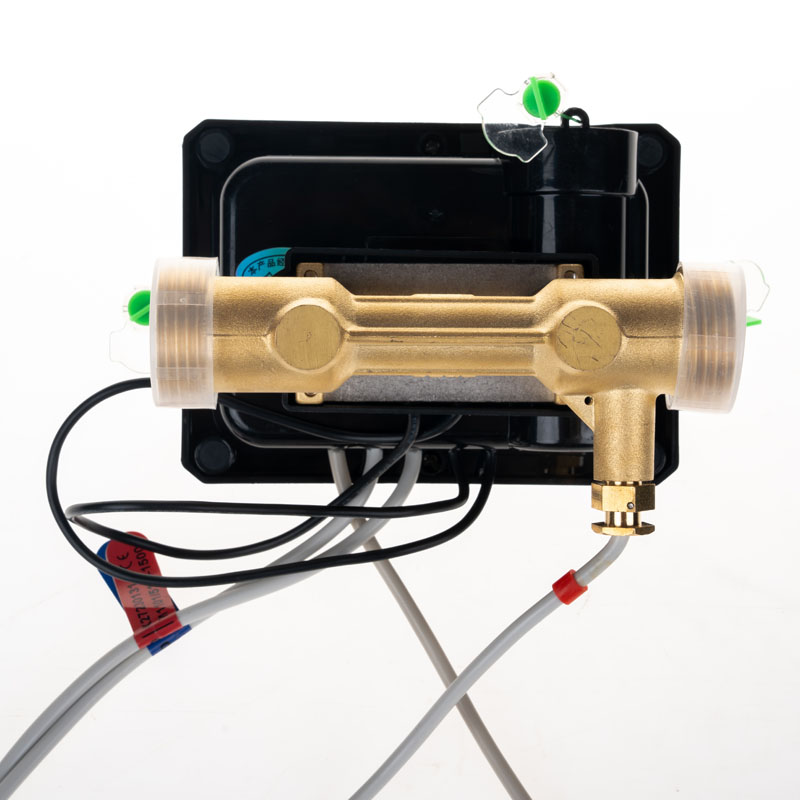

Smart Ultrasoinc Heat Meter for Heating and Cooling System

Accurate Measurement
Uses picosecond high-precision chips for high measurement accuracy and low starting flow, and adopts high-precision platinum resistance for accurate temperature measurement.

Send Inquiry

Product Description

Payment Modes

Embedded with 5-level tiered pricing, supports platform prepayment, on-device prepayment, mixed payment and other payment methods.

Data Storage

Has hourly, daily, monthly and other cycle data, including accumulated heat, accumulated cold, accumulated flow, working time and other data. Data can be stored for a long time after power off.

Intelligent Monitoring

Real-time sound distance measurement, transducer anomaly detection, battery low voltage alarm, empty pipe alarm, temperature alarm, etc.

Ultra-Low Power Consumption

Uses low power consumption design, built-in large-capacity battery, battery life exceeds 6 years.

Multi-Angle Installation

Can be installed horizontally or vertically, and can be installed on the inlet or return pipe according to user needs.

Technical Support

Can be protocol docked and interface docked, meeting different platform usage requirements.

OTA Remote Upgrade

No need to replace, disassemble, or get close to the device. All devices support remote online upgrades.

Convenient Payment

Supports mobile payment such as WeChat official account, Alipay, mini-programs, and queries usage, balance, payment, and other information.


Nominal Diameter

15

20

25

32

40

Dimension

L

110

130

160

180

200

W

87

87

87

85

85

H

1011

101

101

125

130

Max flow (m3/h)

3

5

7

12

20

Norm flow(m3/h)

1.5

2.5

3.5

6

10

Min flow(m3/h)

0.03

0.05

0.07

0.12

0.2

Max flow reading

999999.99(m3)

Max heat reading

99999999(KW·h)

Power supply

3.6VDC

Battery life

>6 years ( Lithium battery)

Accuracy class

Class 2

Communication mode

Infrared interface , NB-IoT/LoRa/M-Bus/RS-485

Press loss

≤ 0.025 Mpa ( under normal flow)

IP class

IP 68

Temperature range

(0--95) ℃

Temperature difference range

(3--60) k

Starting temperature difference

0.01k

Temperature sensor

Pt 1000

Ambient temperature

+5℃ -- +55℃

Ambient level

Level A

Installation

Horizontal/ vertical installation

Monitor

8 digits

Length of temperature sensor

1.5m

Working current

45uA

Data storage

Store historical data up to last 24 months
