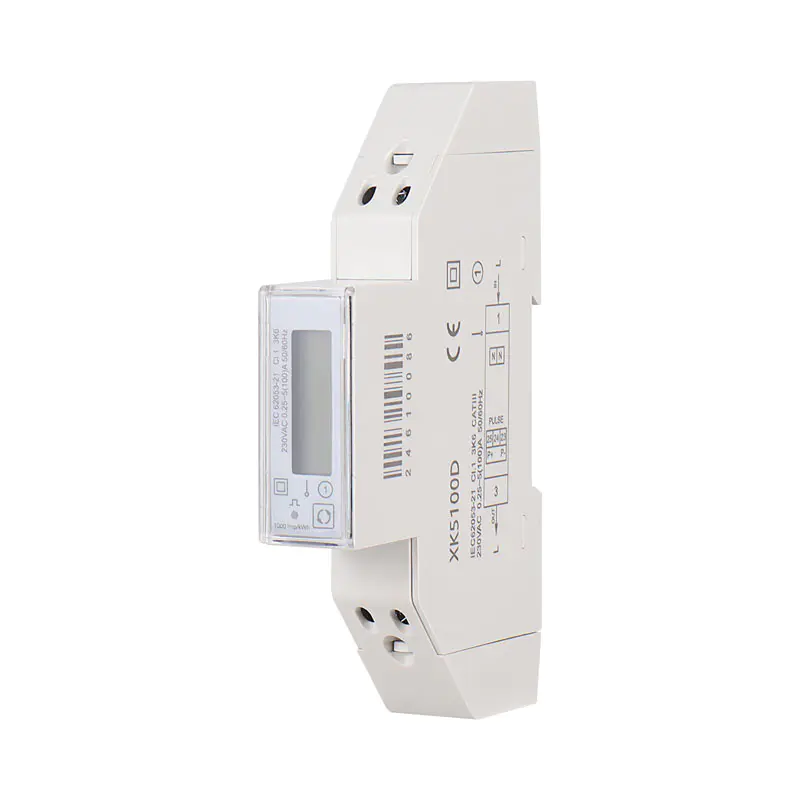

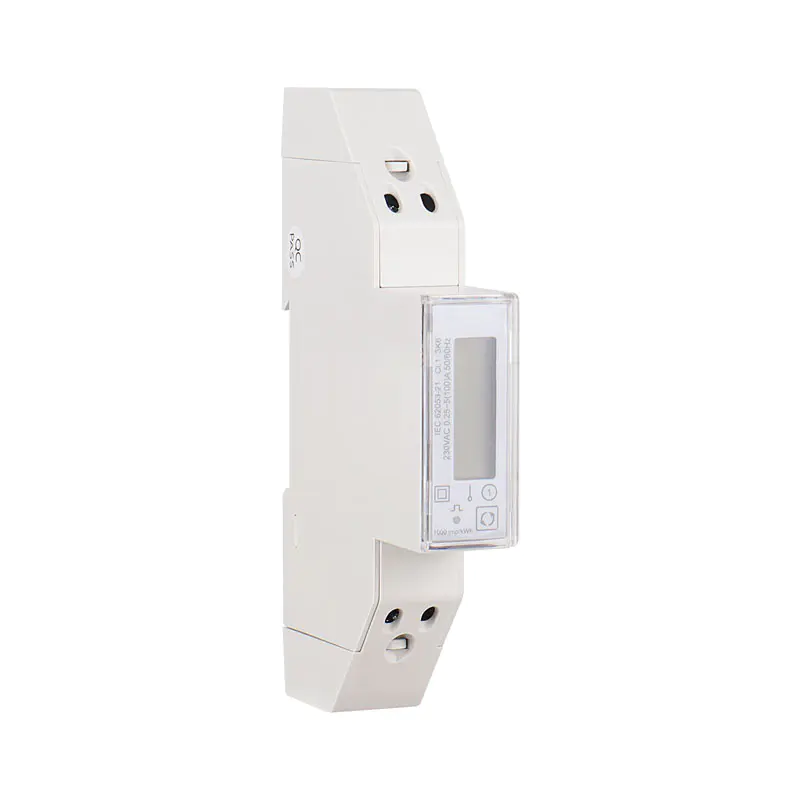

1P Single-phase Multifunction Energy Smart Meter

1P Single-phase Multifunction Energy Smart Meter

Characteristics

➢ Maximum current 100A direct access.

➢ DIN Rail mounting, standard 1 modulus width.

➢ Touch button design improves button operability and reduces button failure rate.

➢ support bidirectional energy metering, mulit-tariff electric energy metering.

➢ Supports one optocoupler pulse output interface, and output parameters can be set.

➢ LCD refresh time is 1 second, support manual or automatic scroll display (configurable)

parameter

1. The Unit can measure and display

Energy Values (include: import, export, import + export)

Active energy ： 0 to 999999.999 kWh (LCD display number of digits: 4+2 -> 5+1 -> 6+0)

Multi-Tariff active energy (T1 - T4)  ：0 to 999999.999 kWh (LCD display number of digits: 4+2 -> 5+1 -> 6+0)

2. The Unit can settable

Pulse output class ：pulse output type, pulse constant, pulse output width

System configuration class ：User password (HMI)

Time class ：Automatic scroll display time, Backlit time, System time (RTC), Tariff time

Installation dimensions

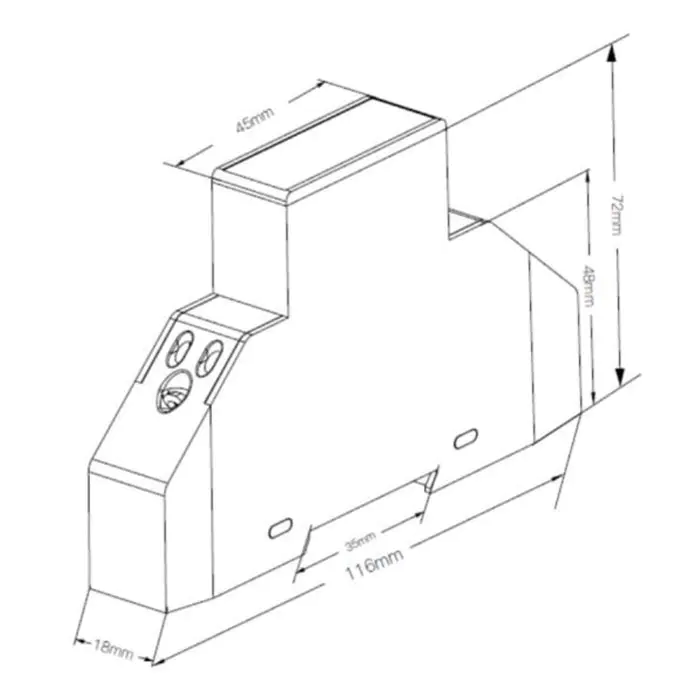

Dimensions without terminal cover

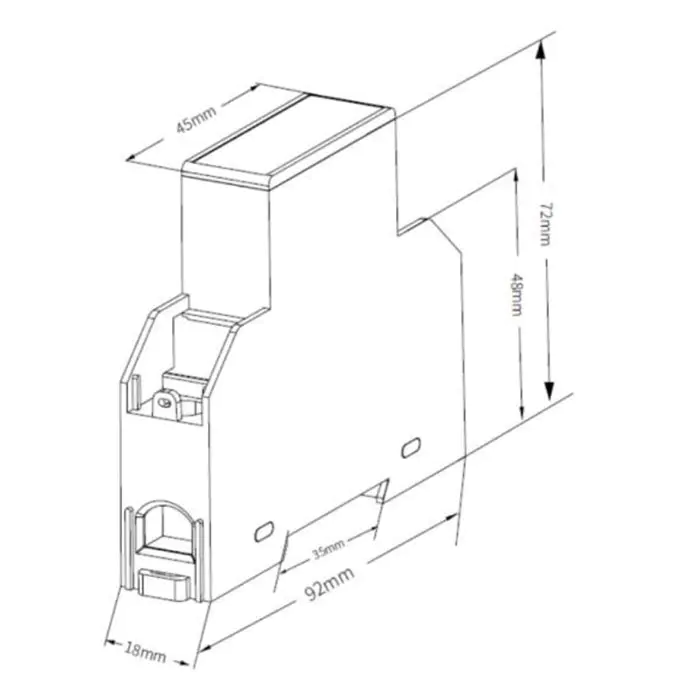

Dimensions with terminal cover
