Household mechanical heat meter bears the features of high accuracy, steady operation, long using life, no subjecting to inferior water and low maintaining cost .DN15 Ultrasonic Heat Meterwith Lora or Lorawam can be widely used in concentrated or regional heat supply system or separate household measuring in central air condition system

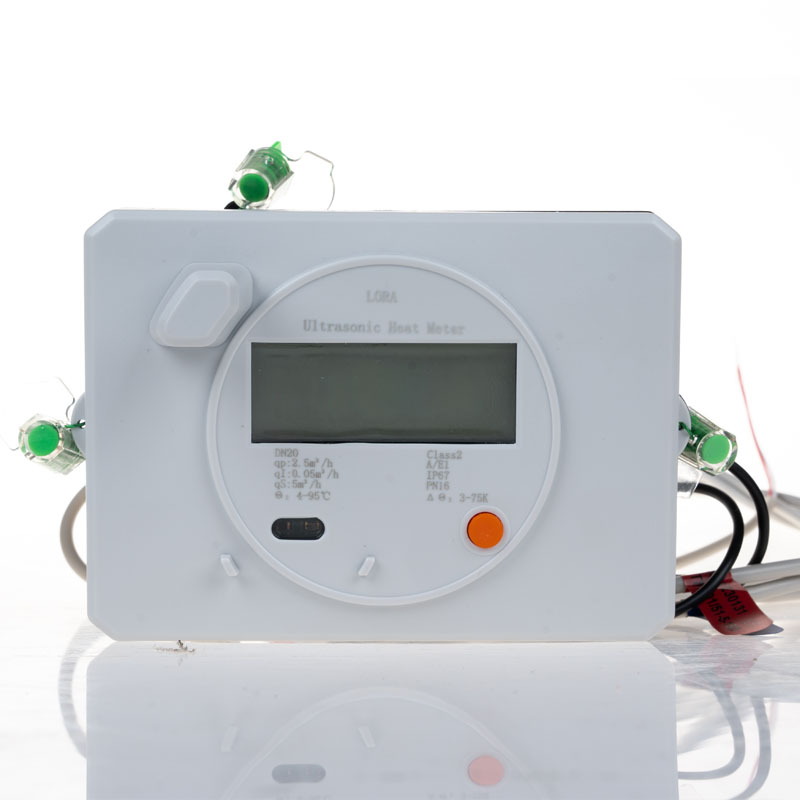

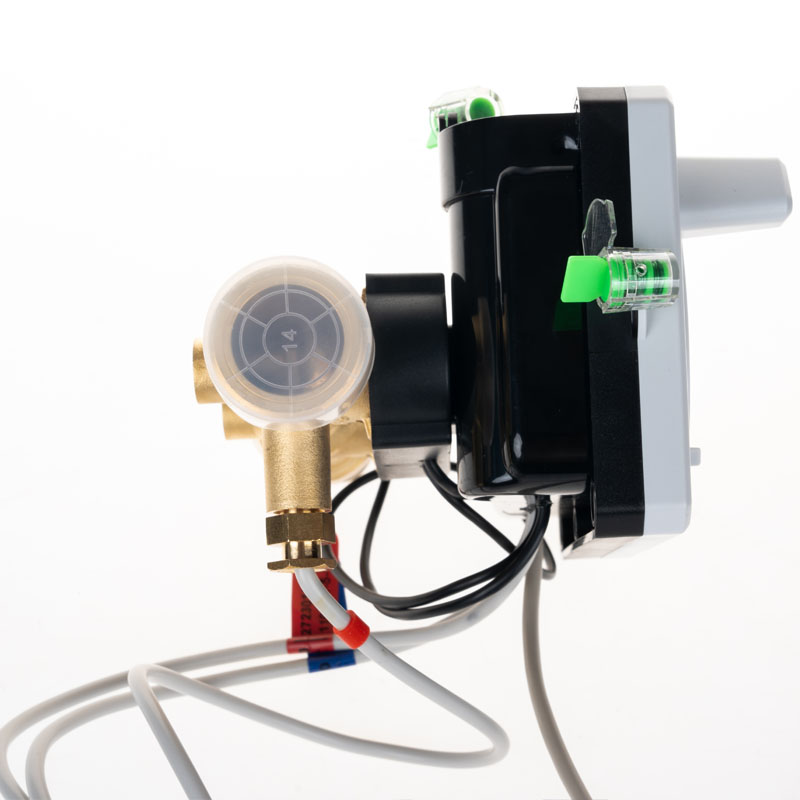

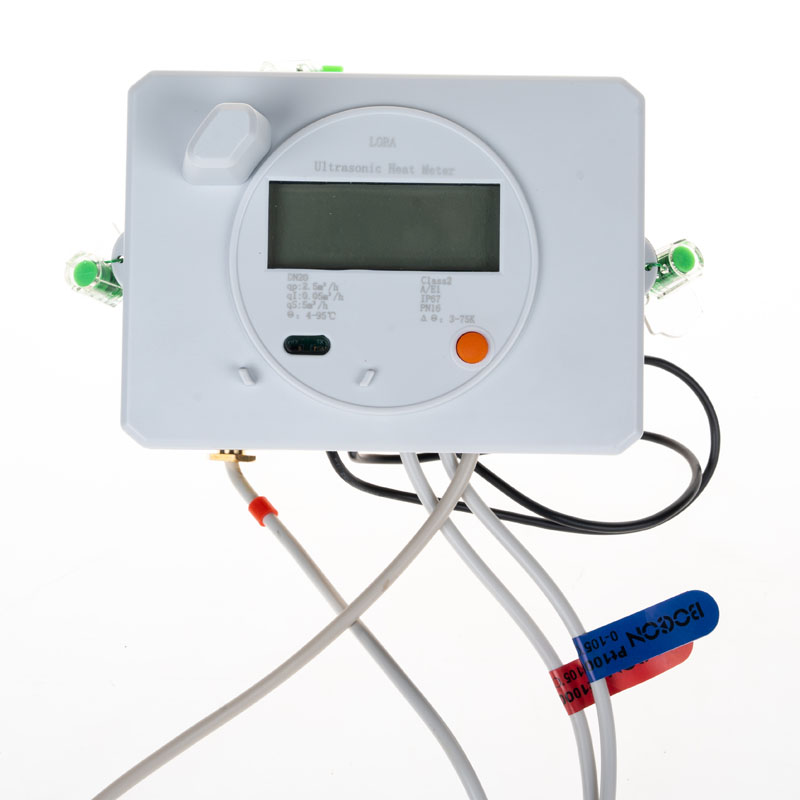

Xinkong DN15 Ultrasonic Heat Meterwith Lora or Lorawam Introduction
Nominal Diameter |
15 |
20 |
25 |
32 |
40 |
|
Dimension |
L |
110 |
130 |
160 |
180 |
200 |
W |
87 |
87 |
87 |
85 |
85 |
|
H |
1011 |
101 |
101 |
125 |
130 |
|
Max flow (m3/h) |
3 |
5 |
7 |
12 |
20 |
|
Norm flow(m3/h) |
1.5 |
2.5 |
3.5 |
6 |
10 |
|
Min flow(m3/h) |
0.03 |
0.05 |
0.07 |
0.12 |
0.2 |
|
Max flow reading |
999999.99(m3) |
|||||
Max heat reading |
99999999(KW·h) |
|||||
Power supply |
3.6VDC |
|||||
Battery life |
>6 years ( Lithium battery) |
|||||
Accuracy class |
Class 2 |
|||||
Communication mode |
Infrared interface , NB-IoT/LoRa/M-Bus/RS-485 |
|||||
Press loss |
≤ 0.025 Mpa ( under normal flow) |
|||||
IP class |
IP 68 |
|||||
Temperature range |
(0--95) ℃ |
|||||
Temperature difference range |
(3--60) k |
|||||
Starting temperature difference |
0.01k |
|||||
Temperature sensor |
Pt 1000 |
|||||
Ambient temperature |
+5℃ -- +55℃ |
|||||
Ambient level |
Level A |
|||||
Installation |
Horizontal/ vertical installation |
|||||
Monitor |
8 digits |
|||||
Length of temperature sensor |
1.5m |
|||||
Working current |
45uA |
|||||
Data storage |
Store historical data up to last 24 months |
