Accurate Measurement
Uses picosecond high-precision chips for high measurement accuracy and low starting flow, and adopts high-precision platinum resistance for accurate temperature measurement.
Payment Modes
Embedded with 5-level tiered pricing, supports platform prepayment, on-device prepayment, mixed payment and other payment methods.
Data Storage
Has hourly, daily, monthly and other cycle data, including accumulated heat, accumulated cold, accumulated flow, working time and other data. Data can be stored for a long time after power off.
Intelligent Monitoring
Real-time sound distance measurement, transducer anomaly detection, battery low voltage alarm, empty pipe alarm, temperature alarm, etc.
Ultra-Low Power Consumption
Uses low power consumption design, built-in large-capacity battery, battery life exceeds 6 years.

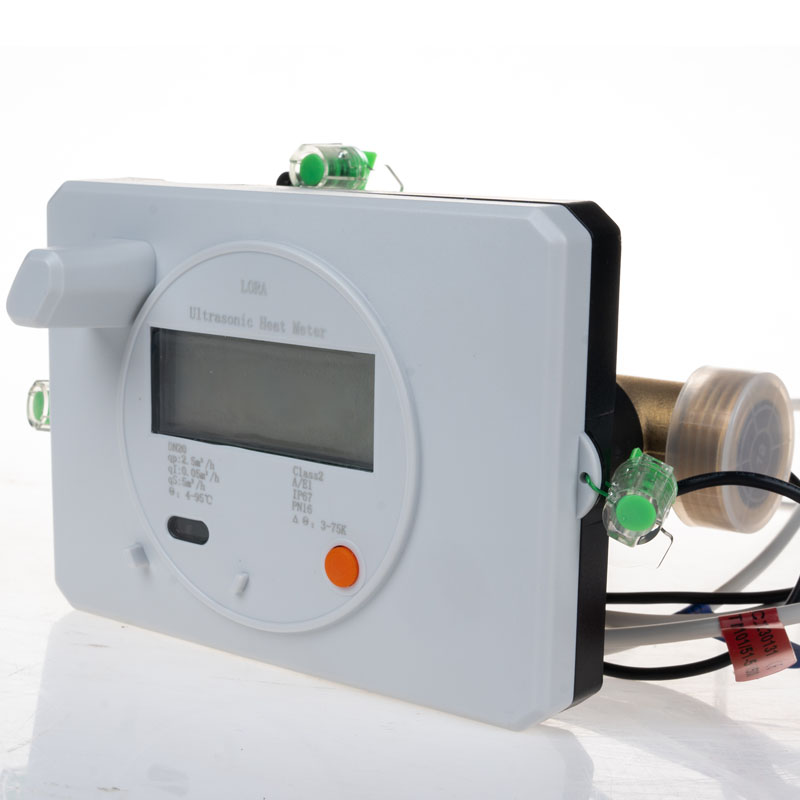

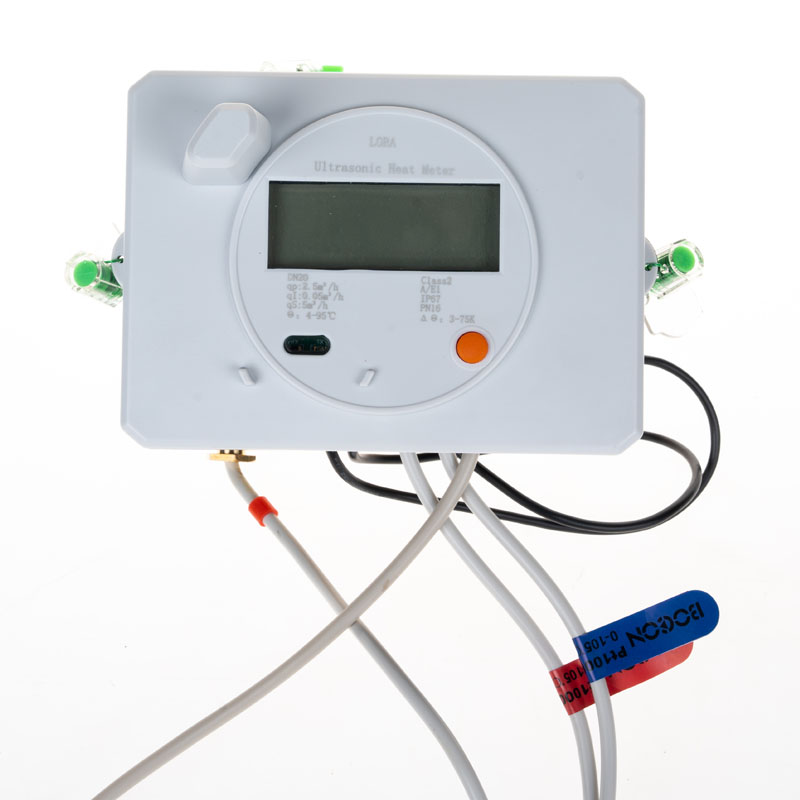

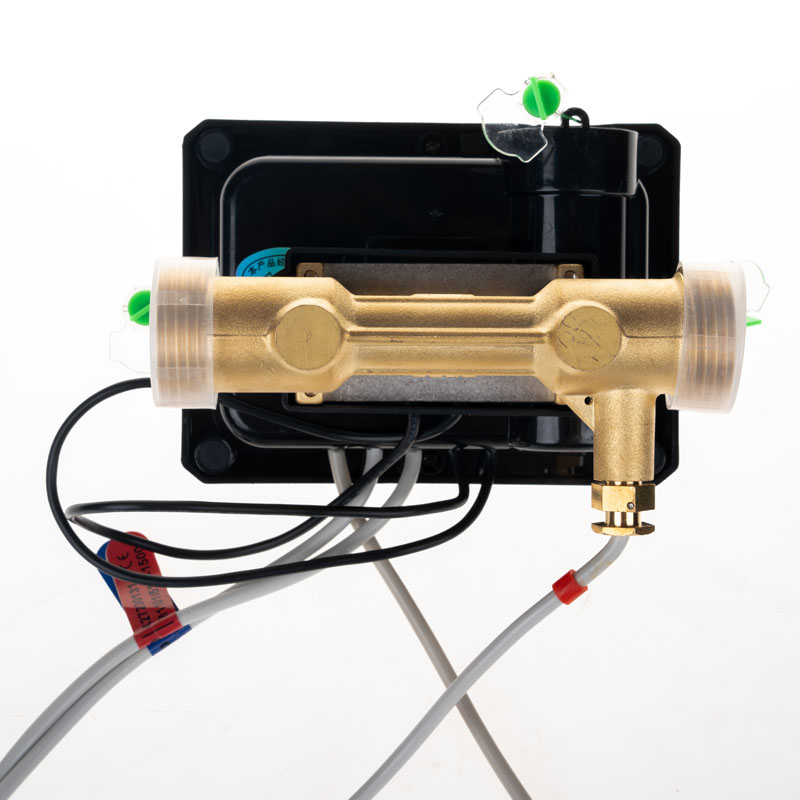

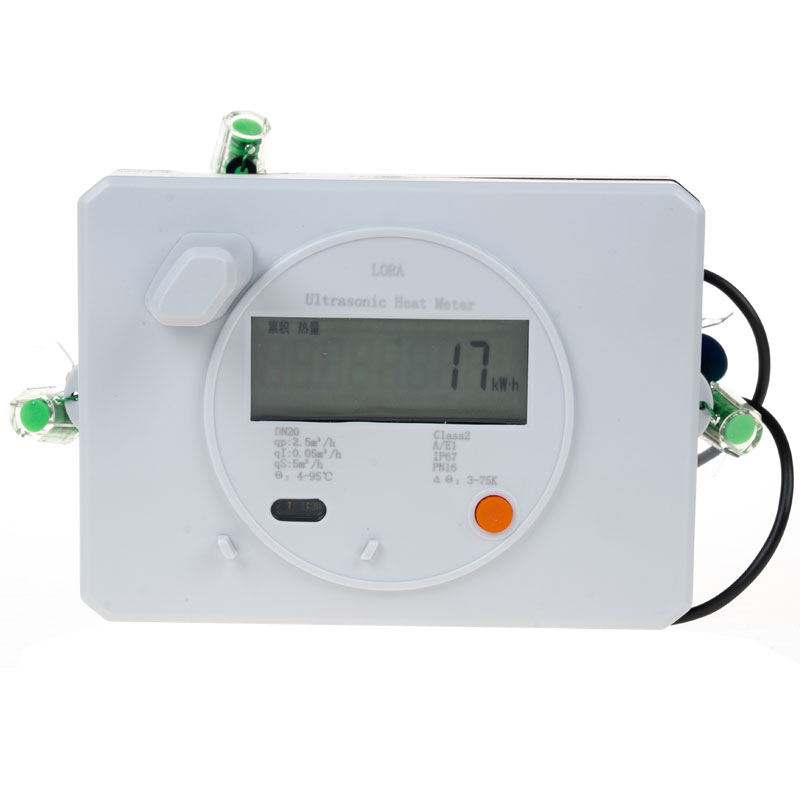

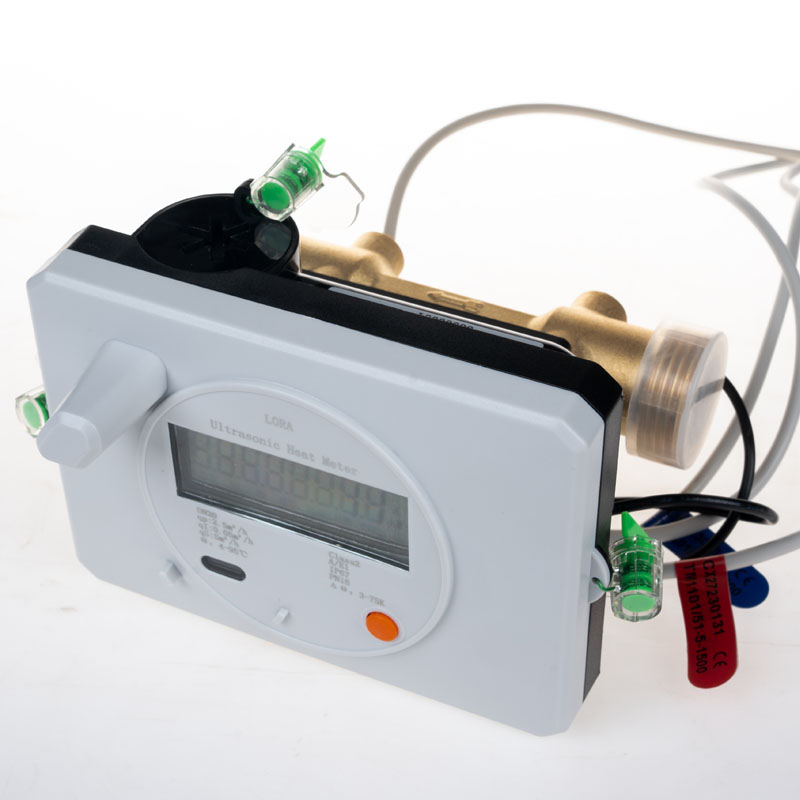

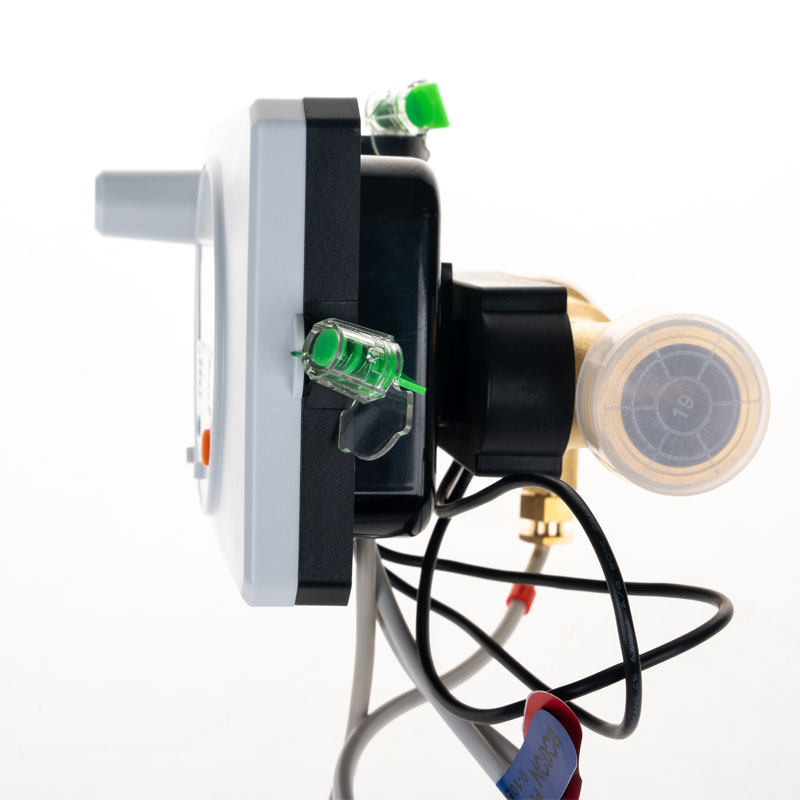

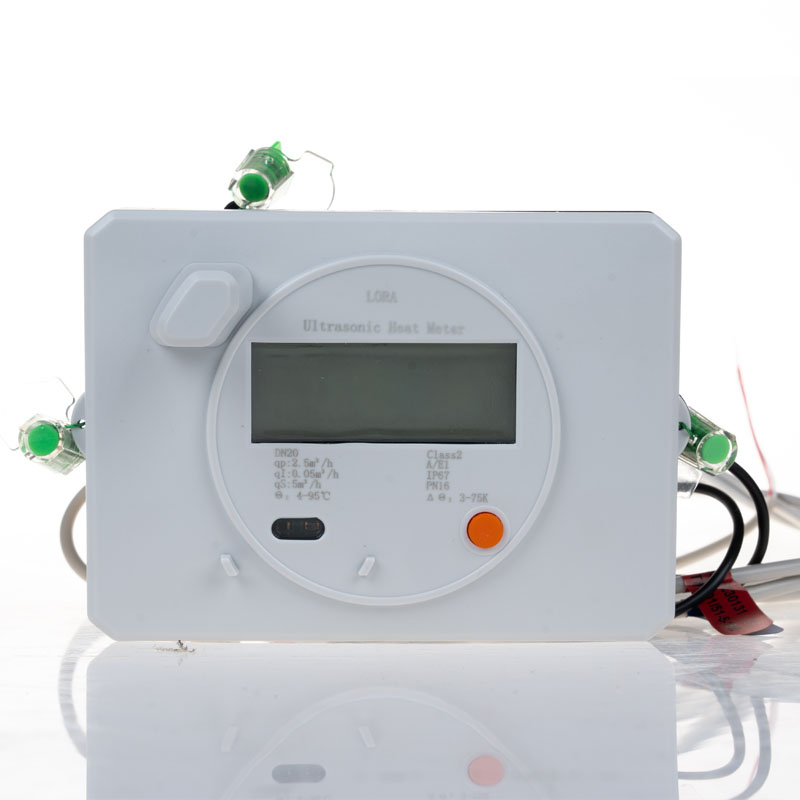

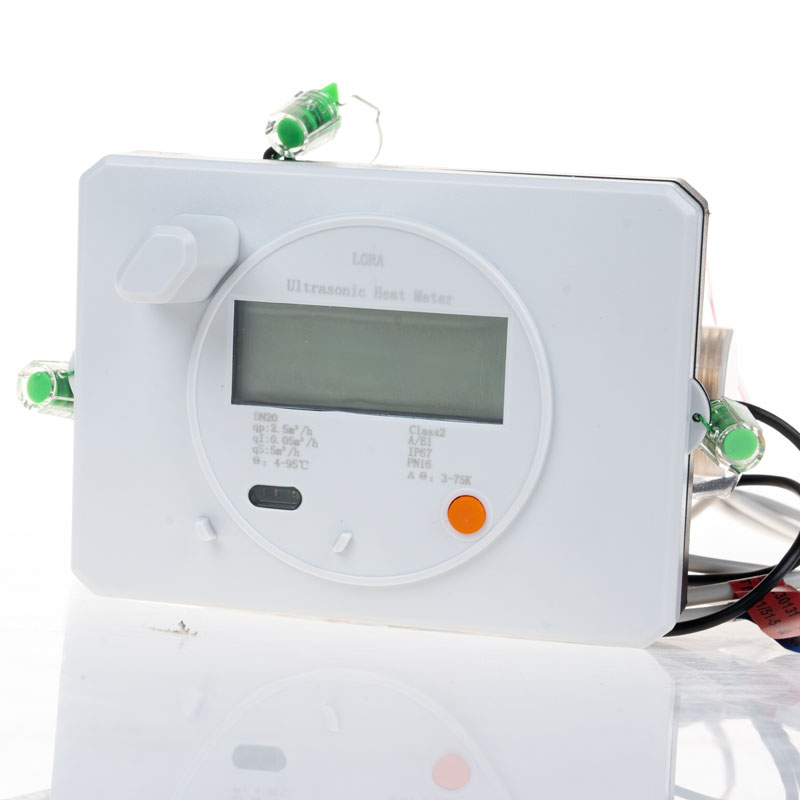

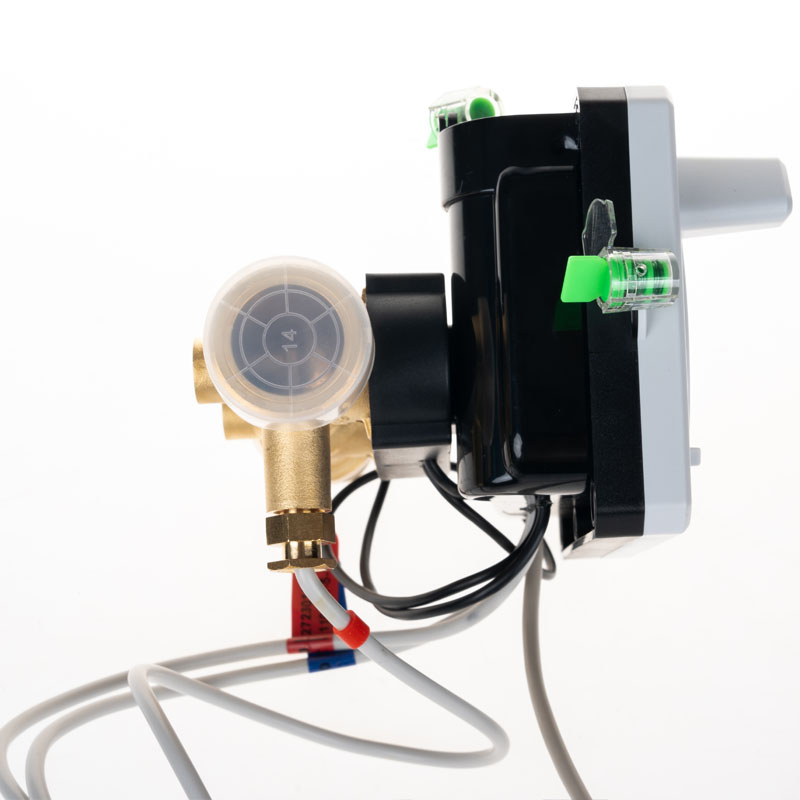

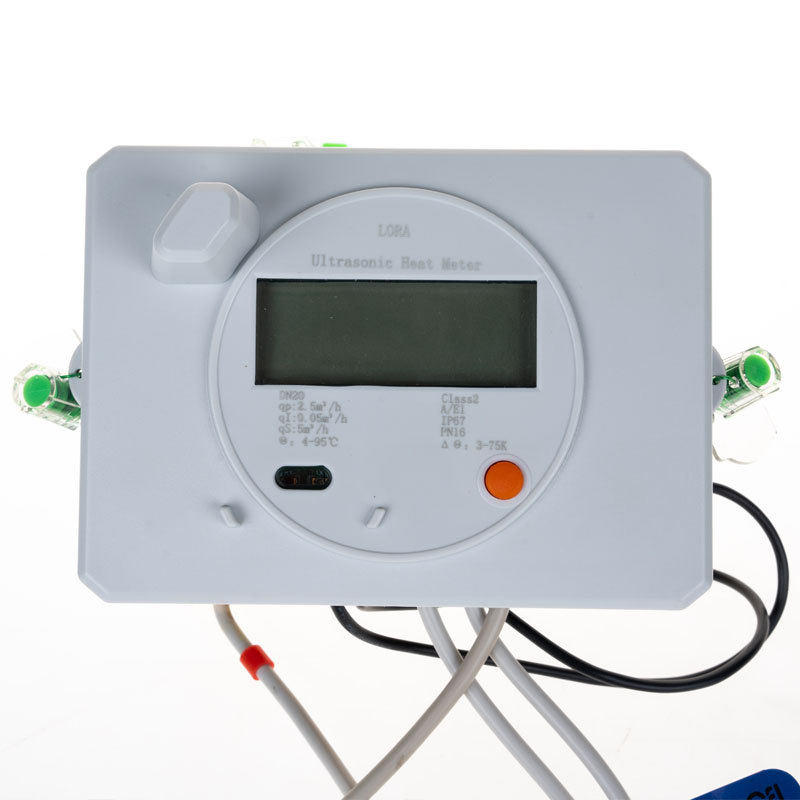

Xinkong DN15 Ultrasonic Heat Meter with M-bus and Pulse in Introduction
Nominal Diameter |
15 |
20 |
25 |
32 |
40 |
|
Dimension |
L |
110 |
130 |
160 |
180 |
200 |
W |
87 |
87 |
87 |
85 |
85 |
|
H |
1011 |
101 |
101 |
125 |
130 |
|
Max flow (m3/h) |
3 |
5 |
7 |
12 |
20 |
|
Norm flow(m3/h) |
1.5 |
2.5 |
3.5 |
6 |
10 |
|
Min flow(m3/h) |
0.03 |
0.05 |
0.07 |
0.12 |
0.2 |
|
Max flow reading |
999999.99(m3) |
|||||
Max heat reading |
99999999(KW·h) |
|||||
Power supply |
3.6VDC |
|||||
Battery life |
>6 years ( Lithium battery) |
|||||
Accuracy class |
Class 2 |
|||||
Communication mode |
Infrared interface , NB-IoT/LoRa/M-Bus/RS-485 |
|||||
Press loss |
≤ 0.025 Mpa ( under normal flow) |
|||||
IP class |
IP 68 |
|||||
Temperature range |
(0--95) ℃ |
|||||
Temperature difference range |
(3--60) k |
|||||
Starting temperature difference |
0.01k |
|||||
Temperature sensor |
Pt 1000 |
|||||
Ambient temperature |
+5℃ -- +55℃ |
|||||
Ambient level |
Level A |
|||||
Installation |
Horizontal/ vertical installation |
|||||
Monitor |
8 digits |
|||||
Length of temperature sensor |
1.5m |
|||||
Working current |
45uA |
|||||
Data storage |
Store historical data up to last 24 months |
