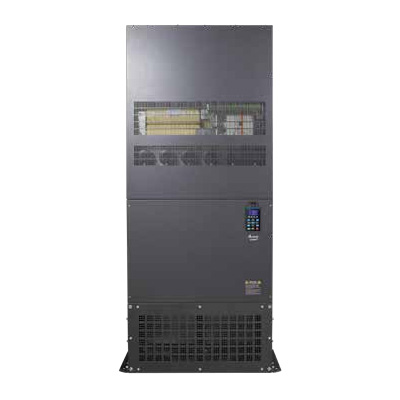

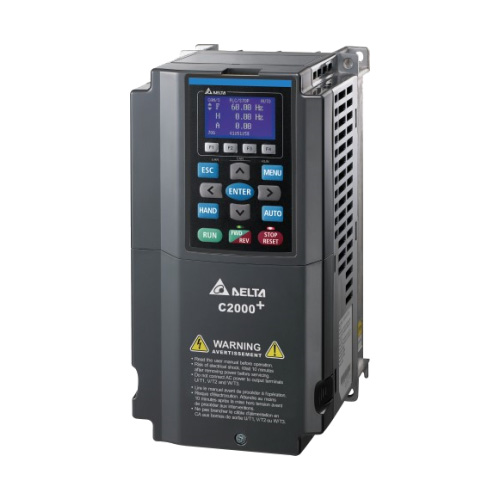

The C2000 Plus series is suitable for the control of induction motors and permanent magnet synchronous motors with or without PG feedback, providing high-performance speed control, torque control and position control for drive systems.
Compared with its predecessor, the C2000 Plus has significantly enhanced overload capability, with a maximum power band of 560 kW for the 460 V model, providing optimal performance and stability for a wide range of heavy-duty fixed-torque loads in a variety of applications, including manufacturing, processing, food, chemical, metal, rubber and plastic, municipal, and infrastructure industries.
The C2000 Plus also supports a variety of communication protocols and has a built-in PLC to improve application flexibility, providing the most cost-effective solution to create a new future with you!
Features
1.High performance drive technology
a.Induction motor and synchronous motor control dual mode setting
b. Dual rated design (HD Heavy Duty / SHD Super Heavy Duty)
c. Speed/torque/position control modes
d. High control bandwidth
2.Diversified drive control
a. Built-in safety stop function
b. Built-in programmable controller
c. Built-in brake unit
d. Drive system networking
e. Position point-to-point control function
3.Environmental Adaptability
a. 50˚C operating ambient temperature
b. Built-in DC reactor
c. Protective coating treatment
d. Built-in EMC filter
e. Global Safety Compliance to CE / UL / cUL
4.Compact modular design
a. Hot-swappable LCD digital operator
b. Output to I/O expansion card
c. Diversified PG feedback cards
d. Fieldbus network card
e. Removable fan
5.Intelligent Logic Controller
Built-in Delta PLC (10 k steps) logic controller, with network system can easily achieve decentralized control and independent operation functions, to achieve your future intelligent control imagination.
Technical Parameter
Control method |
230 VAC / 460 VAC : • IMVF • IMVF + PG • IM/PM SVC • IMFOC + PG • PMFOC + PG • IMFOC Sensorless • PM Sensorless • IPM Sensorless • SynRM Sensorless • IM TQCPG • PM TQCPG • IM TQC Sensorless • SynRM TQC Sensorless 575 VAC / 690 VAC : • IM V/F • IMVF + PG • IM/PM SVC |
Overcurrent protection |
230 VAC models: Inverter stops when main loop DC voltage exceeds 410 V. 460 VAC models: The frequency converter stops when the main loop DC voltage exceeds 820 V. 575 VAC / 690 VAC models: Inverter stops when the main loop DC voltage exceeds 1189 V. |
Output overcurrent protection |
230 VAC / 460 VAC models: 240% of heavy duty (HD) current rating 575 VAC / 690 VAC models: 240% of normal load (ND) rated current Overcurrent protection triggers will cause the inverter to issue an error code and shut down. |
Product Certification |
CE (Low Voltage Directive 2014/35/EU,EN61800-5-1;EMC Directive 2014/35/EU,EN61800-3) UL508C,cUL CAN / CSA C22.2 No.14-13,No.274,Plenum rated RCM,KC,EAC,SEMI F47-0706,GB12668.3 WEEE 2012/19/EU,RoHS 2011/95/EU ISO 9001 (Quality assurance system) ISO 14001 (Environmental system) |
Protection class | IP20 |
International certification |
|
Ordering Information
