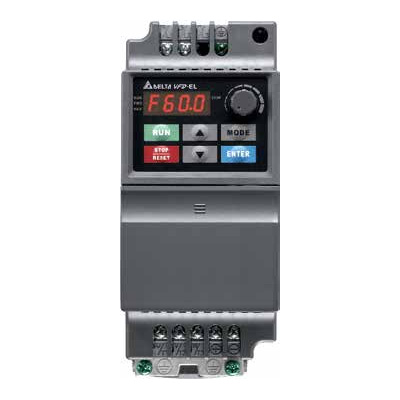

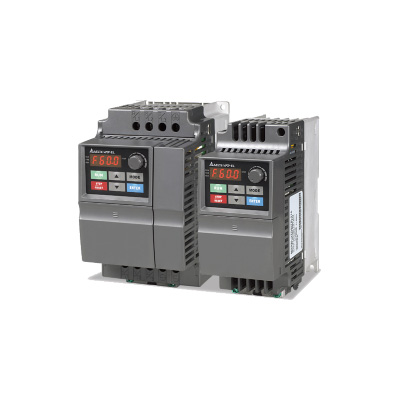

Delta design team VFD-EL built-in high-level intelligent PID controller, eliminating the cost of external PID meter for constant voltage control.
VFD-EL has built-in automatic water failure detection and auto-start function, which eliminates the cost of external PLC controller and relay for water failure detection and auto-start function, VFD-EL has a wide range of input voltages, including single-phase 110 V, single-phase 230 V, three-phase 230 V and three-phase 460 V, which is suitable for all kinds of pumps, and can be applied to various pumps in different countries.
Features
1. Easy Maintenance
Easy-to-maintain removable cooling fan for easy installation and removal.
2. Communciation
Adopts RS-485 communication interface, standard MODBUS communication protocol.
3. Compact design
Compact size saves space. Easily mounted to the navigation system with a track backing plate.
4. Diversified Communication Module
Supports a wide range of communication protocols, including PROFIBUS, DeviceNet and CANopen.
5. Flexible Expansion Card
Flexible expansion of functions according to the application, such as I/O card, relay card, PG card and USB card, etc.

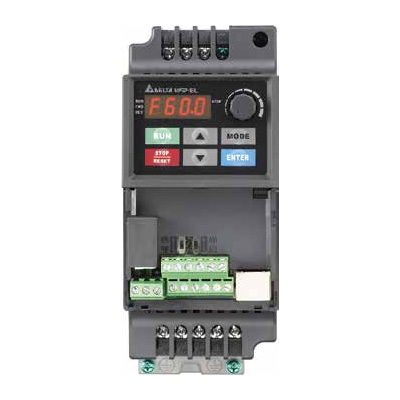

6. Removable panels
The standard panel monitors the status of the inverter. Optional digital operator to modify parameters, start/stop, adjust speed and display inverter status values, etc.
Technical Parameter
Control method | PWM/V/F |
Torque Characteristics | Automatic torque compensation, automatic differential compensation, starting torque up to 150% of rated torque at 5.0 Hz. |
Overload capacity | 150 % of rated output current for 60 sec. |
Protective function | Overvoltage, overcurrent, undervoltage, abnormal external interruptions, motor overload, grounding protection, inverter overload, inverter overheat, electronic thermal overload relay, motor PTC overheat protection, instantaneous power failure restart (parameterized up to 20 sec.) |
Protection class | IP20 |
Build in EMC Filter | 230 V series single-phase models and 460 V series three-phase models are equipped with EMC filters. |
Level of environmental pollution | two |
International certification |
|
Ordering Information
