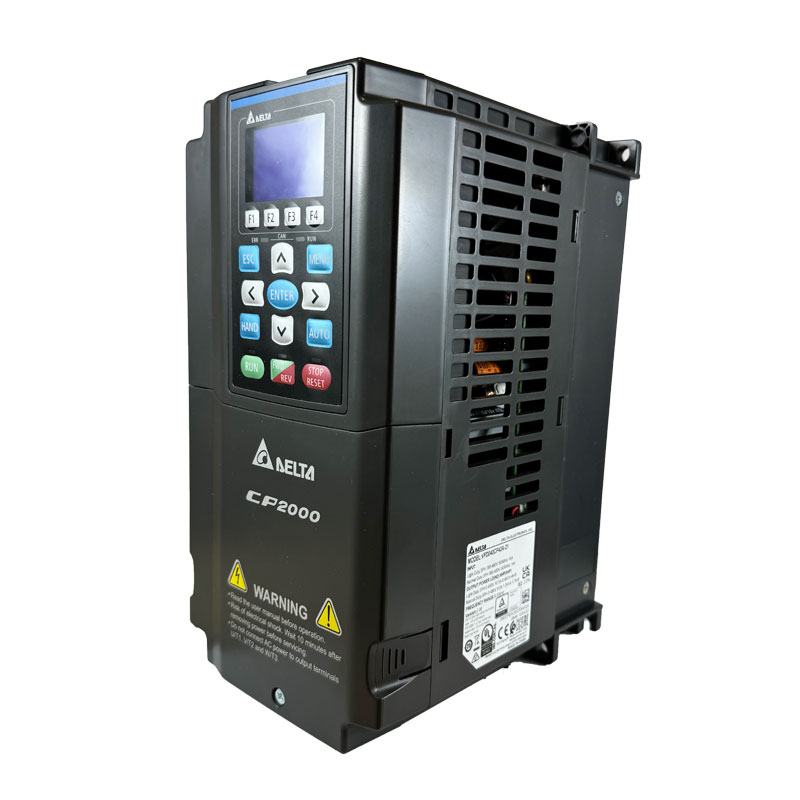

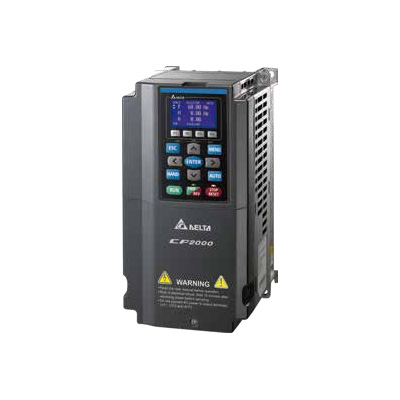

Delta design team to continue the concept of energy saving consistency, launched for fans, pumps, HVAC related the application of tailor-made, PID intelligent debugging, exquisite design of the industry's ultimate efficiency inverter.
No sensing vector control, multi-section V/F control curve setting and soft start function to provide variable torque load and excellent energy efficiency for constant output load.
Features
1.High efficiency drive technology
a.SVC has no sensing vector control
b.Double rated design(LD light load/ND normal load)
c.Excellent constant torque control and high starting torque
2.Modular design
a. Hot-swap operation panel LCD
b. Input/Output I/O expansion card
c.Fieldbus network card
d.Removable fan
3.Environmental adaptability
a.Built-in programmable logic controller
b. Built-in brake brake unit
c. Drive system networking
d. Automatic energy-saving design
4.Compact modular design
a. 50ºC Operating ambient temperature
b. Built-in DC reactor
c.Protective coated circuit board
d.Built-in EMC filter
e.Passed CE,UL,cUL certification
5.High speed communication
Interface with built-in BACnet and RS-485 (Modbus),a variety of optional communication cards: PROFIBUS DP, PROFINET, DeviceNet, Modbus TCP, EtherNet/IP, CANopen,BACnet IP for a variety of communication applications.
6.Multi-pump control
Quantitative timing cycle control, up to eight motors can be controlled at the same time (depending on the actual number of motors required, optional Relay expansion card)
Technical Parameter
Control method | PWM |
Control mode | V/F SVC PM |
Overload tolerance |
CP2000 Standard Version Light load: 1 minute every 5 minutes at 120% of rated output current Normal Load: 1 minute every 5 minutes at 120% of rated output current, 3 seconds every 25 seconds at 160% of rated output current. CP2000 Simplex Light load: 1 minute every 5 minutes at 110% of rated output current. |
Overcurrent protection |
230V1460V Model Light load: overcurrent protection 185% of rated current. Normal load: overcurrent protection 240% of rated current. Current clamping [Light load: 130~135%] ; [Normal load: 170~ 175%] 575V/690V models. Overcurrent Protection 225% Rated Current Current clamping for general load [Light load: approx. 128~141%] ; [General load: approx. 170~ 175]. |
Overoltge protection |
230V Model: DCBUS Voltage exceeds 410V The inverter will stop if the voltage exceeds. 460V Model: DCBUS Voltage exceeds 820V The inverter will stop if the voltage exceeds. 575V Model: DCBUS Voltage exceeds 1016V The inverter will stop if the voltage exceeds. 690V Model: DCBUS Voltage exceeds 1189V The inverter will stop if the voltage exceeds 1189V The inverter will stop if the voltage exceeds 1189V The inverter will stop if the voltage exceeds 1189V. |
Overtemperature protection | Built-in temperature sensor |
Ground leakage current protection | Leakage current higher than 50% of the rated current of the inverter |
Protection class | IP20 |
International certification |
|
