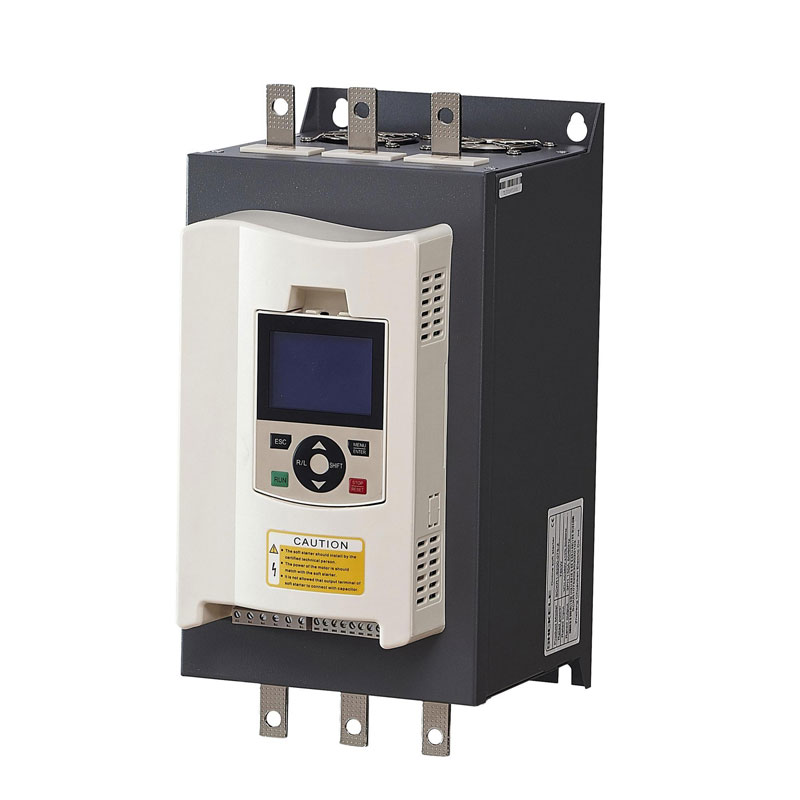

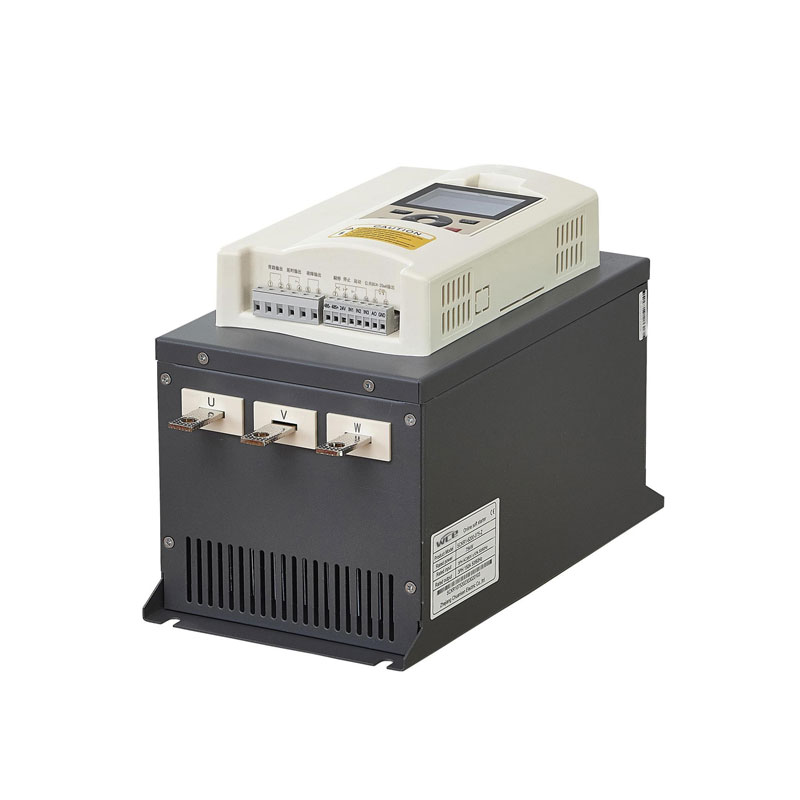

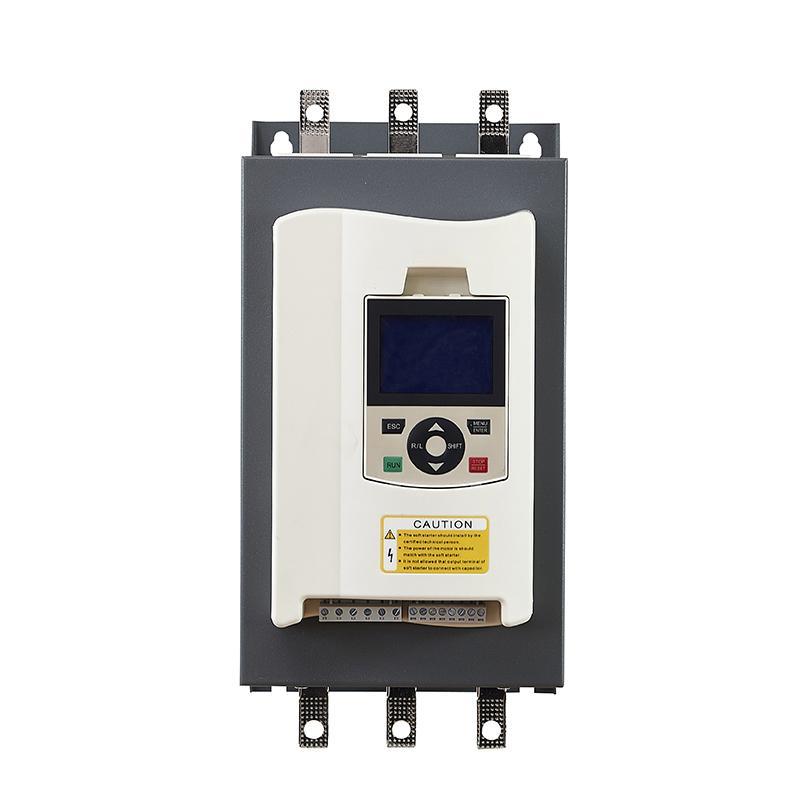

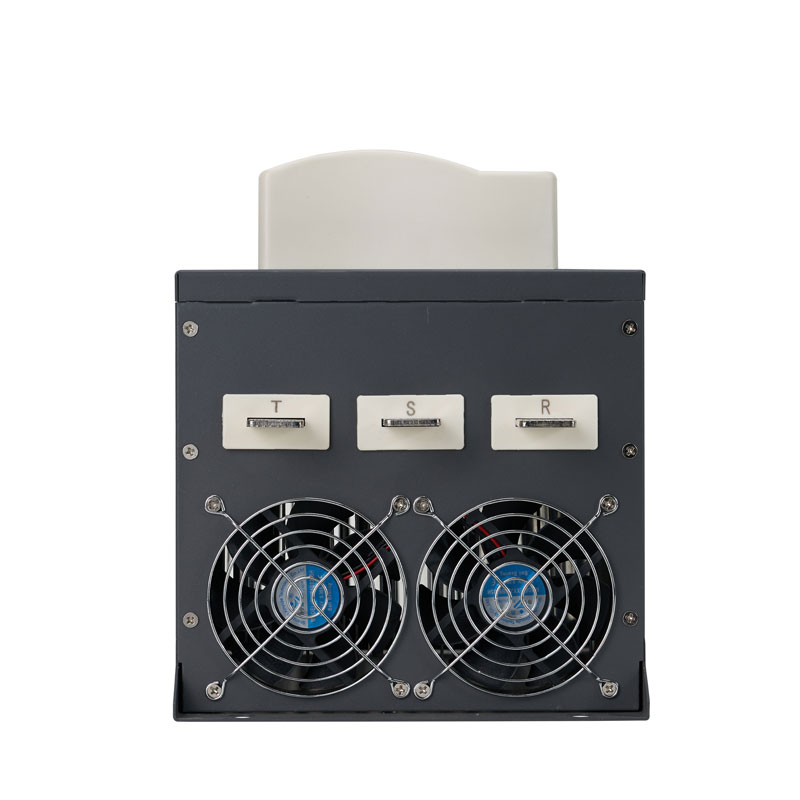

Reliable and Easy to Use 75KW AC Soft Starter for Protect Electric AC Motor
  • Reliable and Easy to Use 75KW AC Soft Starter for Protect Electric AC MotorReliable and Easy to Use 75KW AC Soft Starter for Protect Electric AC Motor
  • Reliable and Easy to Use 75KW AC Soft Starter for Protect Electric AC MotorReliable and Easy to Use 75KW AC Soft Starter for Protect Electric AC Motor
  • Reliable and Easy to Use 75KW AC Soft Starter for Protect Electric AC MotorReliable and Easy to Use 75KW AC Soft Starter for Protect Electric AC Motor
  • Reliable and Easy to Use 75KW AC Soft Starter for Protect Electric AC MotorReliable and Easy to Use 75KW AC Soft Starter for Protect Electric AC Motor

Reliable and Easy to Use 75KW AC Soft Starter for Protect Electric AC Motor

Xinkong AC soft starter.The soft starter is equipped with 3 starting modes, 12 protection functions and two stopping modes. "With MCU as the core and intelligent digital control, it is suitable for starting squirrel-cage asynchronous motors with various loads; it can make the motor start smoothly under any working conditions, protect the dragging system, reduce the impact of the starting current on the power grid, and ensure the reliable starting of the motor: smooth deceleration and stopping eliminates the inertial impact of the dragging system: complete system Protection function, extend the service life of the system, reduce the cost of the system, improve the reliability of the system: compatible with all the various functions of the starting equipment, is the traditional star-delta, autotransistor reduced-voltage starting, magnetic-controlled reduced-voltage starting and other ideal replacement products. Three in and three out, no need to add another contactor, greatly saving the user cost

Send Inquiry

Product Description

Features

1. Real-time display in real language

Kaweco wants to make your job easy, so the SCKR1-6300 displays feedback in real language, so you don't have to check the code to see what's going on. With a real-time metering display and 10 event logs, tracking motor performance has never been easier.

2. Remote Display Mounting

With the optional operator board mounting kit, the operator pole is easily mounted outside the cabinet. If more than one soft starter is installed in a cabinet, this facilitates centralized control in one place where all relevant information is available. Multiple displays can also be mounted side by side to quickly diagnose problems. (The protection level after installation is IP65)

3. Higher Intelligence of Overdrive

The SCKR1-6300 enables you to control motor starting.   You can choose the best soft start control method according to the application requirements. For applications that require precise control of motor starting current, SCKR1-6300 provides double-closed control.

4. Smoother stopping

The CPU can also accurately control soft stops for applications that require smoother soft stops. the CPU is suitable for small inertia loads such as pumps and conveyor belts, and can greatly reduce or even eliminate the water hammer effect.

5. Easier installation

If the space in the motor control center is limited, using the compact design of the SCKR1-6300 can save 70% of the space, no bypass contactor, reduce the primary and secondary wiring and labor costs by more than 30%.

6. Removable connectors and unique terminal blocks

The plug-in control terminal block is easy to install. Simply unplug each terminal block, connect the wires and replay them into the terminal block.Cables can be efficiently arranged using the SCKR1-6300's unique flexible cable routing, where cables can be routed from the top, left or bottom.


Technical Parameter

Customized support LOGO custom, Design custom, Outer packing
Place of Origin China
Protection Class IP20
Warranty 18 Months
Panel display LCD display
Cooling way Fan Cooling*2
Keypad Can remotely
Language English
ODM Modbus(RS485)
Voltage 220V/380V/440V/660V
Stop Mode Soft stop(time:0~60s);Free stop
Output Power: 5.5KW-55KW


Soft starter appearance and mounting dimensions
