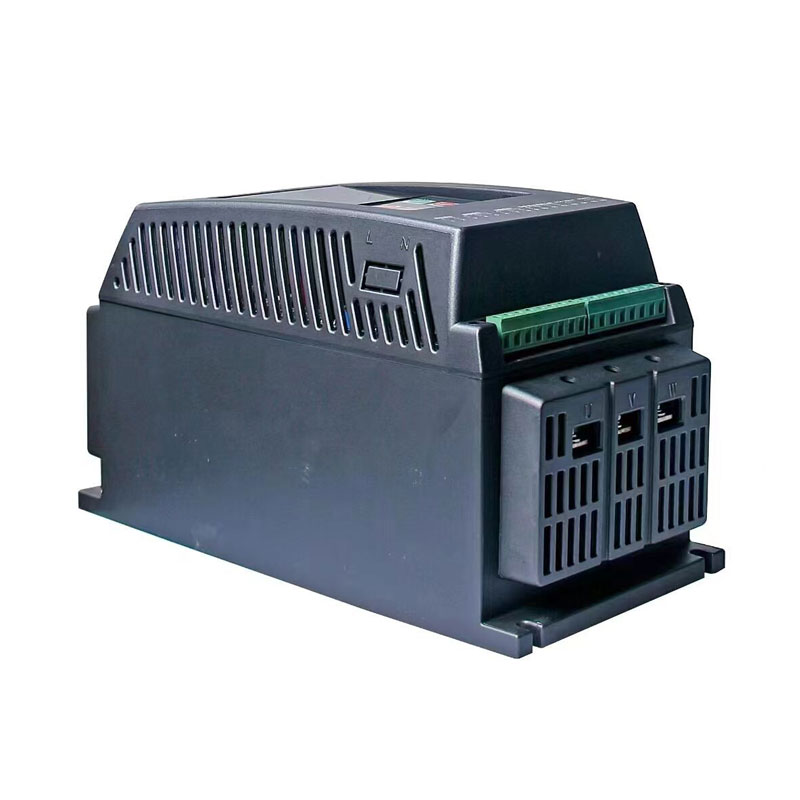

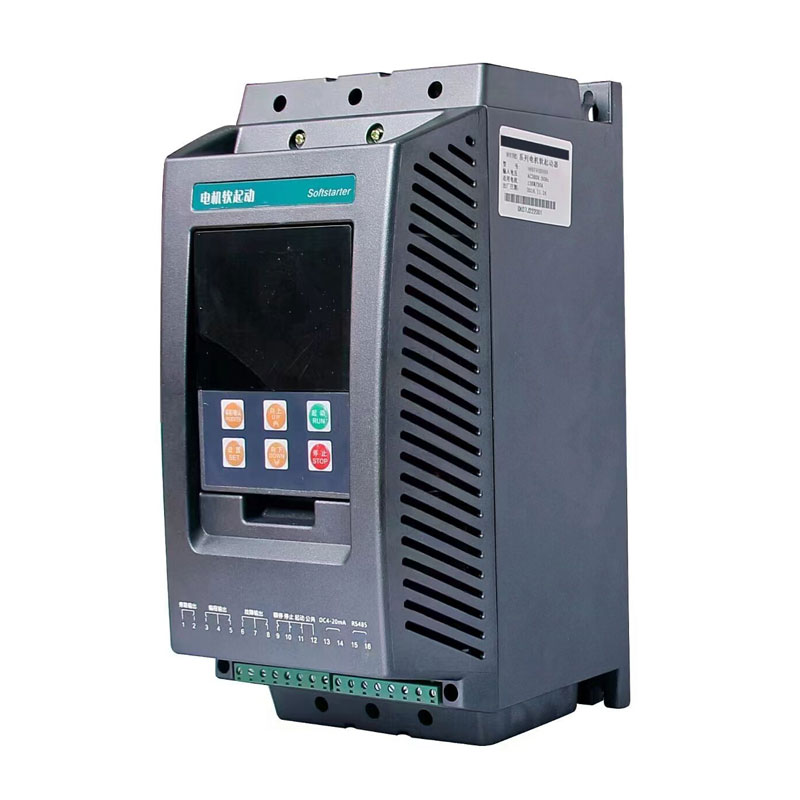

Advanced Motor Control Technology AC Soft Starter

Product Description

Advanced Motor Control Technology AC Soft Starter

- Advanced motor control technology utilized in the AC soft starter ensures smooth acceleration and transition, avoiding destructive torque impact on the mechanical system. - The soft starter meets the requirements for starting torque, ensuring the output torque of the motor satisfies the mechanical system's needs.

- It prevents excessive starting current, safeguarding the motor against overheating, insulation damage, or burnout.

- The soft starter ensures the starting current meets the capacity of the motor, preventing potential harm to the motor during startup.

- Conforms to the relevant standards for energy quality, reducing voltage sag and minimizing high harmonic content in the power grid.

- Provides a reliable and efficient solution for starting motors, offering smooth and controlled acceleration. - Suitable for applications requiring precise and controlled motor starting, preventing potential damage to the equipment.

- Enhances the lifespan of the motor by eliminating sudden torque impact during startup. - Easy to install and integrate into existing systems, allowing for convenient retrofitting.

- Perfect for various industrial applications where precise motor control and protection are crucial.

Main Menu	Sub Menu	Parameter
A. S&P Para	A00.Curr Limit for CLS	10%~500%
	A01.Init Volt for VRS	30%~80%
	A02.Start Time for VRS	1~120s
	A03.Volt for Plus Start	30%~80%
	A04.Time for Plus Start	0~500ms
	A05.Curr Limit for CRS	10%~400%
	A06.Start Time for CRS	1~120s
	A07.Volt for Jog	30%~80%
	A08.Time for Soft Stop	1~10s
	A09.Start Mode	Volt Ramp Curr Limit Jog Curr Ramp Plus & Ramp C-Limit Ramp
	A10.Stop Mode	Free Stop Soft Stop
	A11.Control Mode	Forbid Key Board Terminal Ctrl Term & Key
	A12.Prog Relay Func	Non-Func Power On Standby Starting Bypass Stopping Running Fault
B.Protect	B00.Start OC Ratio	400%~600%
	B01.Running OC Ratio	200%~400%
	B02.Start OL Level	1~8
	B03.Running OL Level	1~8
	B04.Curr Unbalance Ratio	5%~85%
	B05.Over Volt Threshold	100%~140%
	B06.Under Volt Threshold	60%~100%
	B07.Under Load Threshold	0%~100%
	B08.Under Load Delay	0~200s
C.Run Para	C00.Starter Rated Curr	Factory Constant
	C01.Starter Rated Volt	Factory Constant
	C02.Motor Rated Curr	5A~Starter Rated Curr
	C03.Curr Cali Ratio	50~1500
	C04.Pulse Under Running	Pulse No Pulse
D. Misc	D00.MODBUS Addr	1~127
	D01.Baud Rate	19200 9600 4800 2400 1200
	D02.Volt Cali Ratio	5~200
	D04.Language	Chinese English Russian
