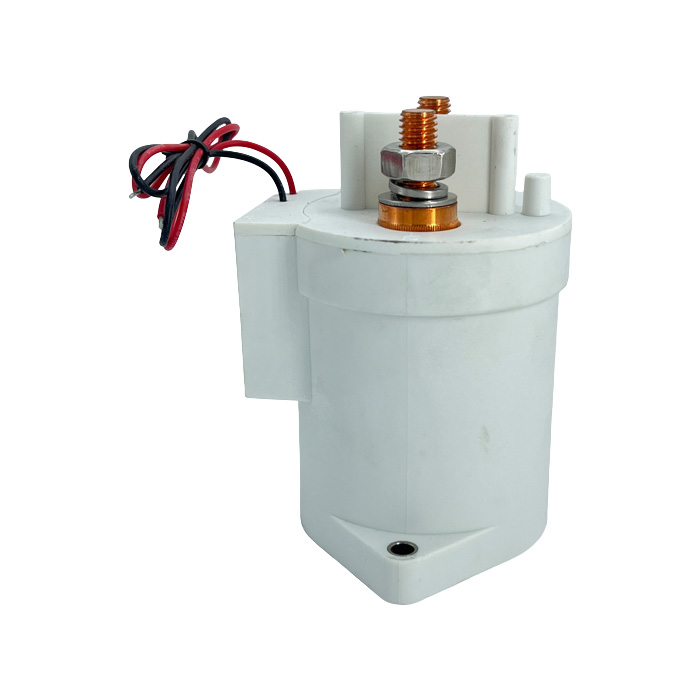

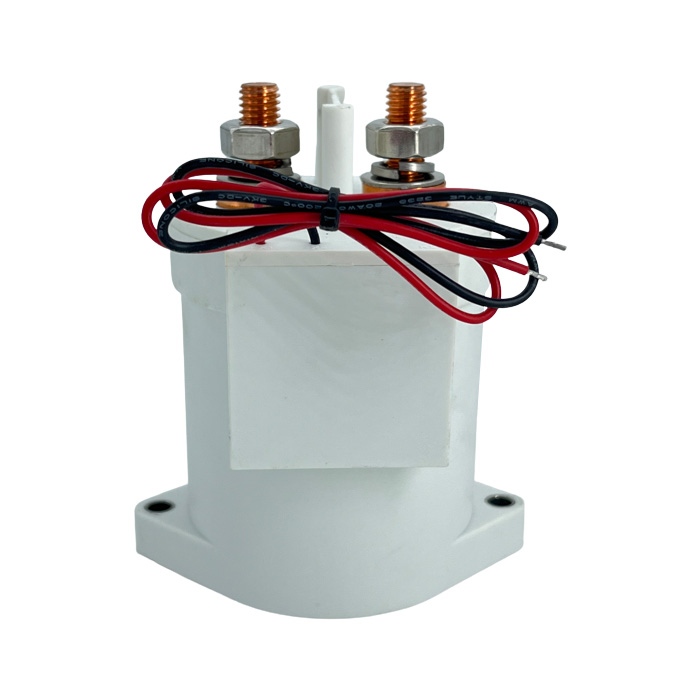

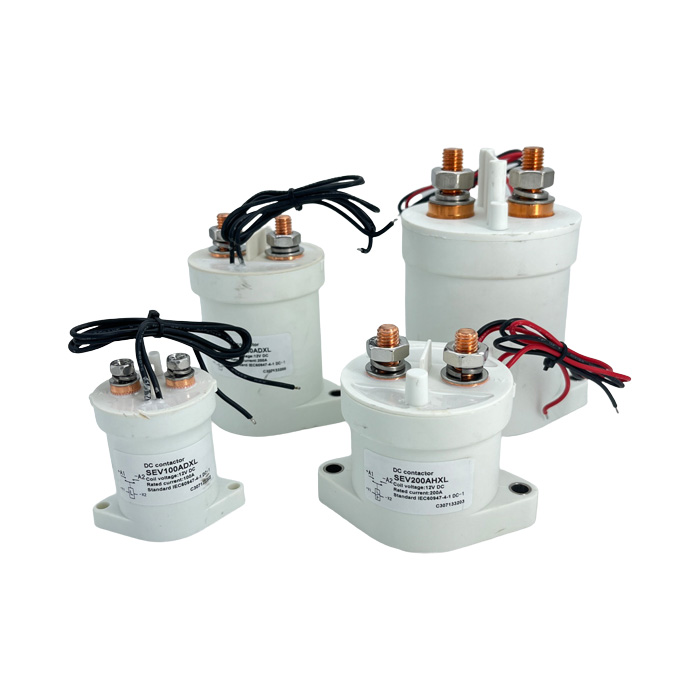

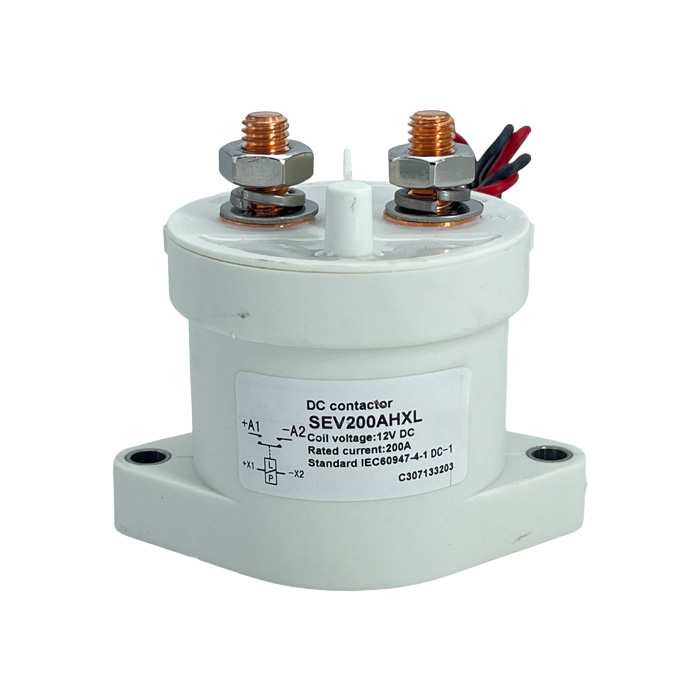

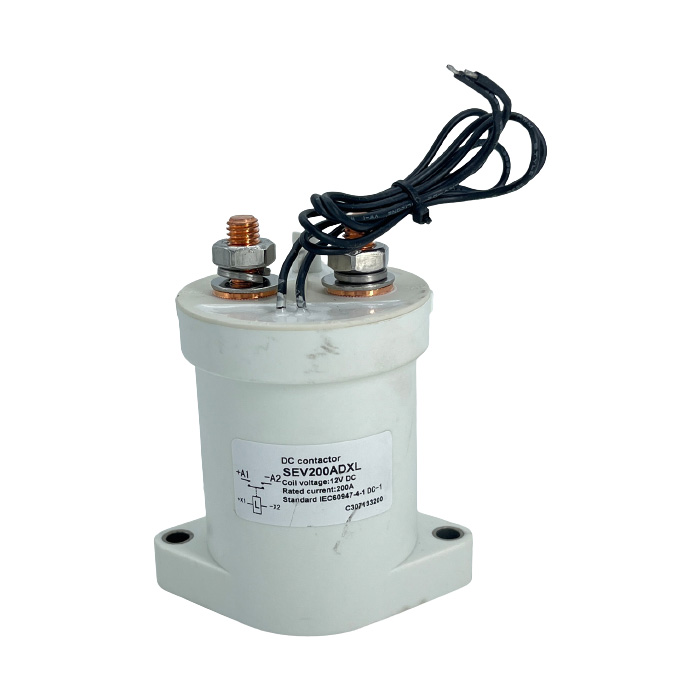

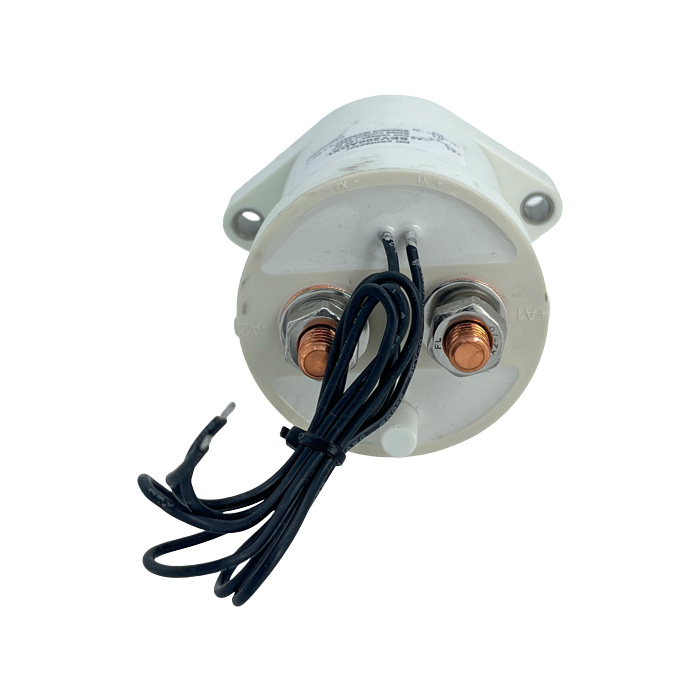

high voltage DC Contactor Product Description: Experience a long-lasting and reliable performance with our high-quality DC Contactor. Engineered with precision and crafted to perfection, this compact device is designed to meet all your electrical needs. The DC Contactor is meticulously designed to ensure a long lifespan and exceptional performance. Its compact size allows for easy installation and integration into various applications. Built to endure rigorous usage, this DC Contactor is the ideal choice for any project that requires a reliable and efficient electrical contactor. With its superior quality and precision engineering, it guarantees optimal performance and functionality.
This product have one normally open contact, for electric vehicles, telecommunication equipment, engineering machinery, car batteries, electric forklift trucks, trains, ships, electronic control systems such as uninterruptible power supply.
Contact form |
1 NO(SPST-NO) or 1NC(SPST-NC) |
Coil Rated voltage(DC V) |
DC6V,12V,24V,36V,48V,60V,72V,84V,120V,150V,DC220V,AC220V etc. |
Contact voltage(DC V) |
5-1000V |
Contact circuit rated load current (DC-1) |
800A |
Typical voltage drop across contacts per 100A |
≯80mV |
the cooling pull-in voltage at (20±5)℃ (V) |
≯70% |
the cooling drop-out voltage at (20±5)℃(V) |
≯35%,≮5% |
Working voltage range of 40 degrees celsius coil |
0.8-1.2Us |
Drop-out time(n/o contacts to open) |
80ms |
Pull-in time (n/o contacts to close) |
20ms |
connect the maximum contact bounce time |
10ms |
Disconnect the maximum contact bounce time |
7ms |
Insulation Resistance |
100MΩ |
Electric strength to resist |
50Hz/60Hz 2200VAC 1minute |
Typical fault currents which can be ruptured |
1500A/5ms at 48V DC |
Coil power (W) |
Start:30-60,Keep:4-10 |
Temperature rise of coil (K) |
≤15 |
Temperature rise on outgoing terminal (K) |
≤65 |
Electric life |
20000 times |
Mechanical life |
300 thousand times |
Work specification |
Continuous |
Contact material |
Alloy |
Inrush time(Max) |
130ms |
Maximum switching current |
3000A 320VDC(More than 1 times) |
Maximum switching power |
1000kW |
Load terminal type |
M10 Rose |
Coil terminal type |
0.3 square silicone wire, 390mm long |
Auxiliary contact rated load (choose) |
3A/30VDC |
Testing organization certification |
CE,FCC,RoHS |
