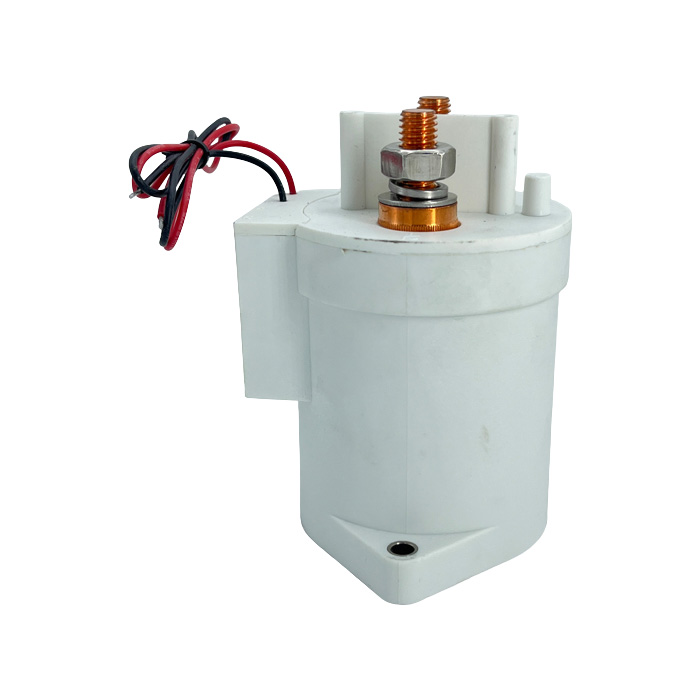

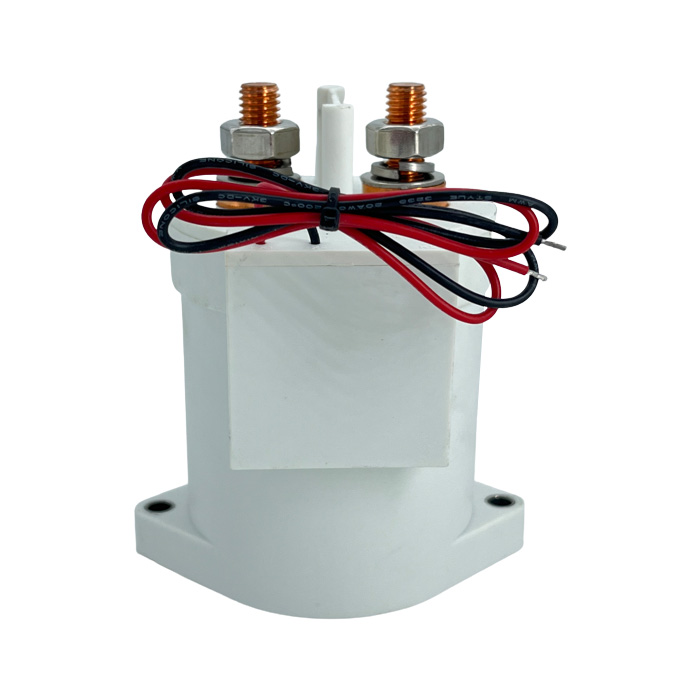

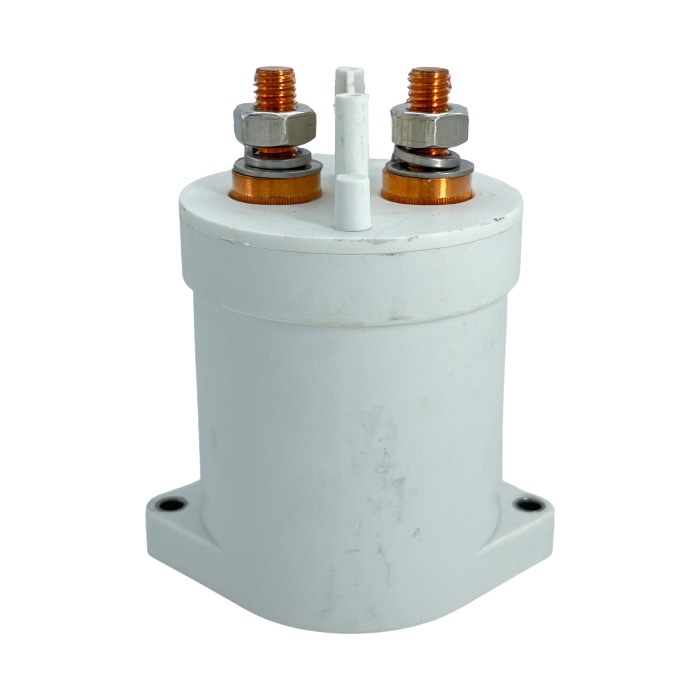

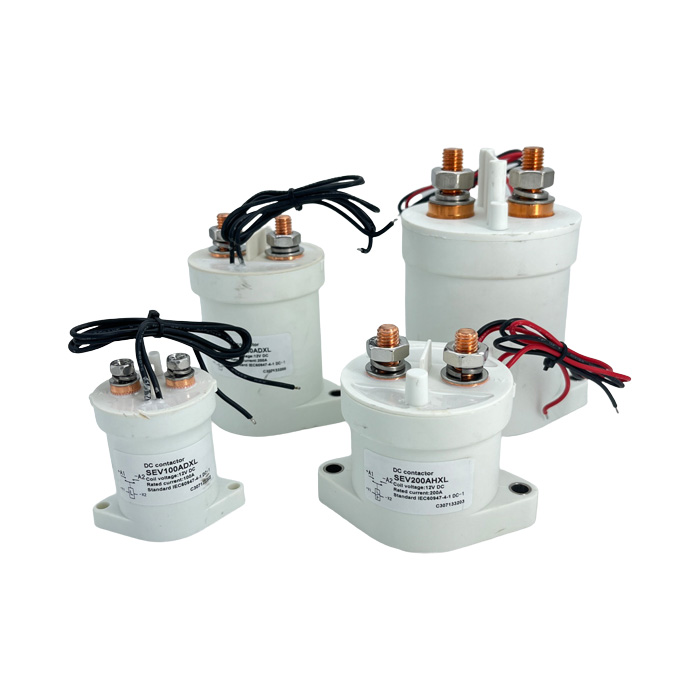

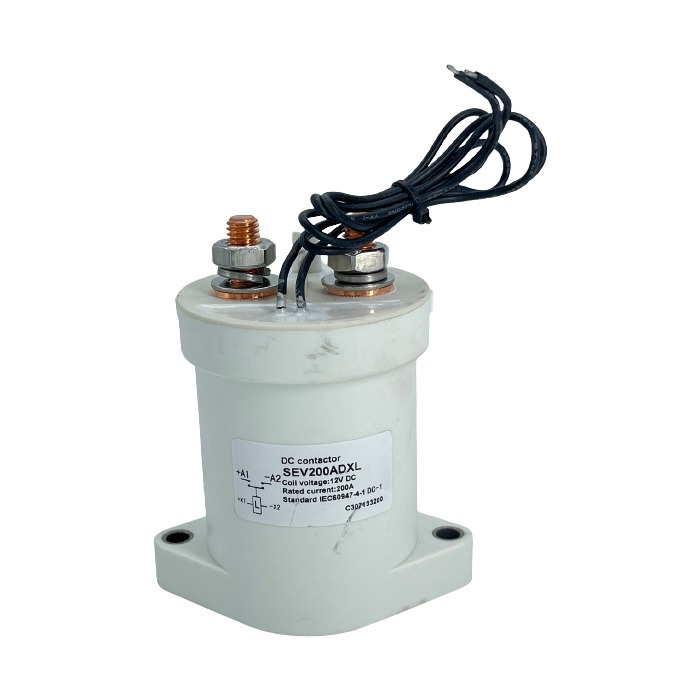

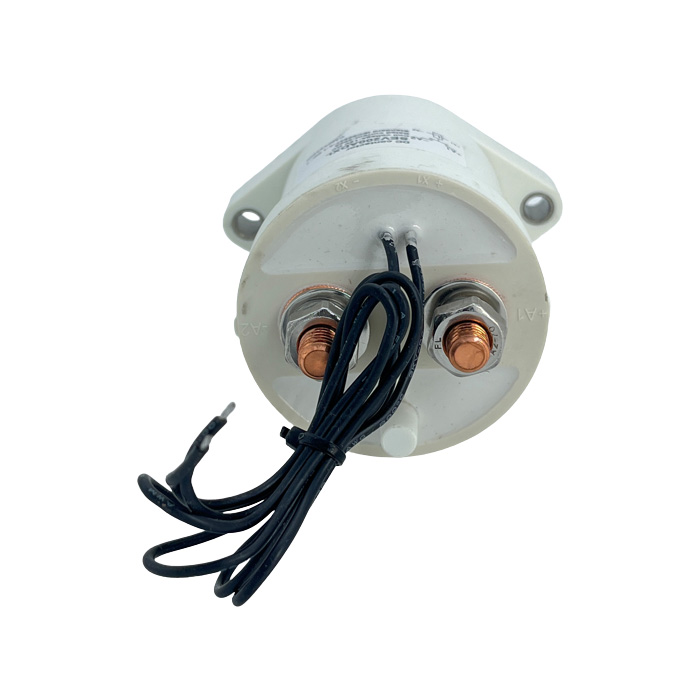

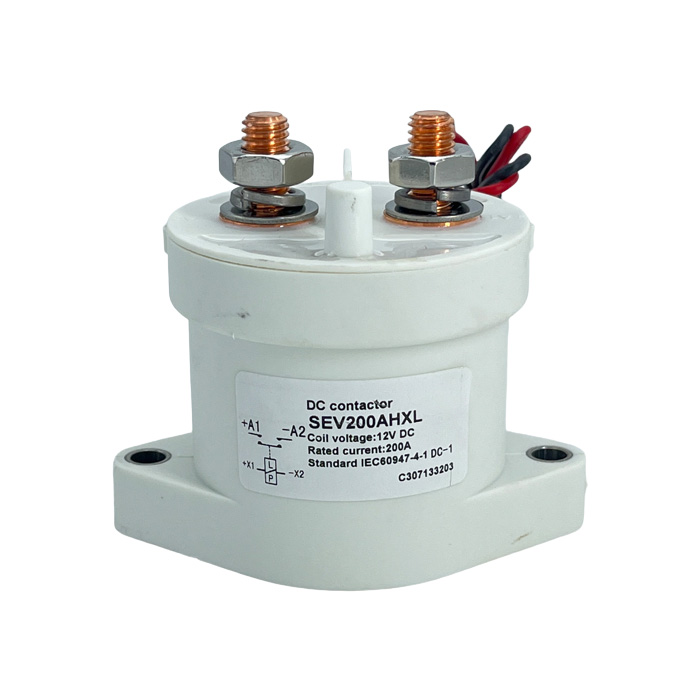

Xinkong dc contactor 1. Low power consumption for energy efficiency. 2. Minimal heat generation for enhanced safety. 3. Long lifespan for continuous and reliable operation. 4. Compact size for easy installation in limited spaces. 5. Lightweight design for applications with weight constraints. Trust in our DC Contactors to meet your industrial needs with their exceptional performance, durability, and versatility. Whether you require reliable control in manufacturing, automation, transportation, or renewable energy systems, our DC Contactors offer the ideal solution. Invest in the excellence of our DC Contactors and experience unmatched performance today.
Contact form |
1 NO(SPST-NO) or 1NC(SPST-NC) |
Coil Rated voltage(DC V) |
6V,12V,24V,36V,48V,60V,72V,84V,120V,150V etc. |
Contact voltage(DC V) |
5-1000V |
Contact circuit rated load current (DC-1) |
50A |
Typical voltage drop across contacts per 50A |
≯80mV |
the cooling pull-in voltage at (20±5)℃ (V) |
≯70% |
the cooling drop-out voltage at (20±5)℃(V) |
≯35%,≮5% |
Working voltage range of 40 degrees celsius coil |
0.8-1.2Us |
Drop-out time(n/o contacts to open) |
20ms |
Pull-in time (n/o contacts to close) |
10ms |
connect the maximum contact bounce time |
10ms |
Disconnect the maximum contact bounce time |
7ms |
Insulation Resistance |
100MΩ |
Electric strength to resist |
50Hz/60Hz 2200VAC 1minute |
Typical fault currents which can be ruptured |
500A/5ms at 48V DC |
Coil power (W) |
2-7 |
Temperature rise of coil (K) |
≤35 |
Temperature rise on outgoing terminal (K) |
≤65 |
Electric life |
20000 times |
Mechanical life |
300 thousand times |
Work specification |
Continuous |
Contact material |
Alloy |
Inrush time(Max) |
130ms |
Maximum switching current |
400A 320VDC(More than 1 times) |
Maximum switching power |
130kW |
Load terminal type |
M5 Rose |
Coil terminal type |
0.3 square silicone wire, 390mm long |
Testing organization certification |
CCC,CE,FCC,RoHS |
