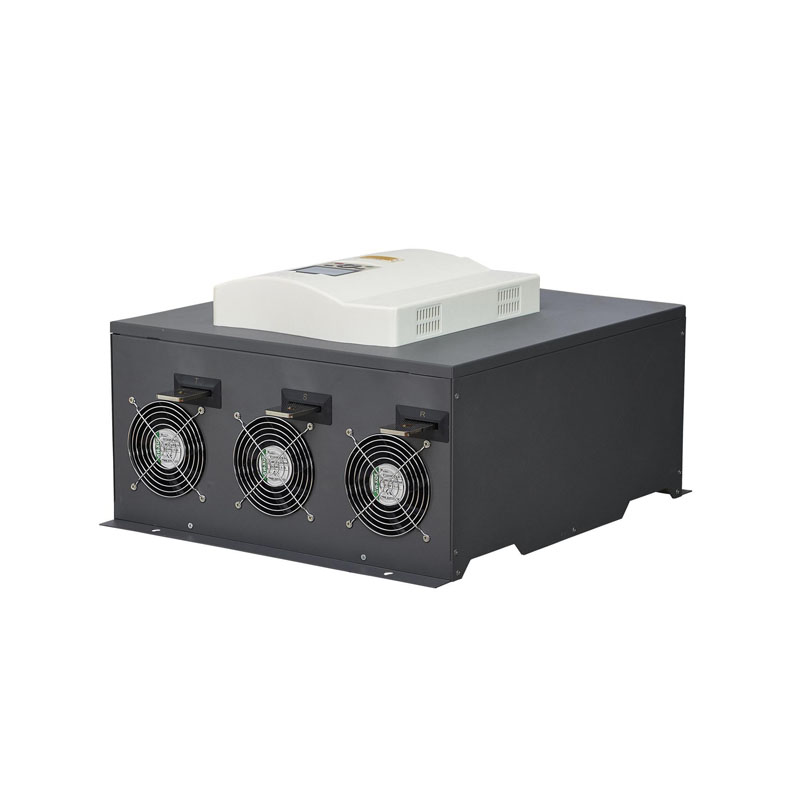

Xinkong Motor Soft Starter.With the optional operator panel mounting kit, the operator panel can be easily mounted outside the cabinet. If more than one soft starter is installed in a cabinet, this facilitates centralized control in one place where all relevant information is available. Multiple displays can also be mounted side by side to quickly diagnose problems. (Protection rating of IP65 after installation). High-speed fan plus in and out of the wind cooling grille, 360 degrees all-round cooling, when the soft start start fan high-speed operation, after the soft start to stop the fan five minutes automatically stop running, to achieve intelligent cooling so that users do not waste every power.
Features
1. Real-time display in real language
Kaweco wants to make your job easy, so the SCKR1-6300 displays feedback in real language, so you don't have to check the code to see what's going on. With a real-time metering display and 10 event logs, tracking motor performance has never been easier.
2. Remote Display Mounting
With the optional operator board mounting kit, the operator pole is easily mounted outside the cabinet. If more than one soft starter is installed in a cabinet, this facilitates centralized control in one place where all relevant information is available. Multiple displays can also be mounted side by side to quickly diagnose problems. (The protection level after installation is IP65)
3. Higher Intelligence of Overdrive
The SCKR1-6300 enables you to control motor starting. You can choose the best soft start control method according to the application requirements. For applications that require precise control of motor starting current, SCKR1-6300 provides double-closed control.
4. Smoother stopping
The CPU can also accurately control soft stops for applications that require smoother soft stops. the CPU is suitable for small inertia loads such as pumps and conveyor belts, and can greatly reduce or even eliminate the water hammer effect.
5. Easier installation
If the space in the motor control center is limited, using the compact design of the SCKR1-6300 can save 70% of the space, no bypass contactor, reduce the primary and secondary wiring and labor costs by more than 30%.
6. Removable connectors and unique terminal blocks
The plug-in control terminal block is easy to install. Simply unplug each terminal block, connect the wires and replay them into the terminal block.Cables can be efficiently arranged using the SCKR1-6300's unique flexible cable routing, where cables can be routed from the top, left or bottom.
Technical Parameter
Customized support | LOGO custom, Design custom, Outer packing |
Place of Origin | China |
Protection Class | IP20 |
Warranty | 18 Months |
Panel display | LCD display |
Cooling way | Fan Cooling*2 |
Keypad | Can remotely |
Language | English |
ODM | Modbus(RS485) |
Voltage | 220V/380V/440V/660V |
Stop Mode | Soft stop(time:0~60s);Free stop |
Output Power: | 185kw-400kw |

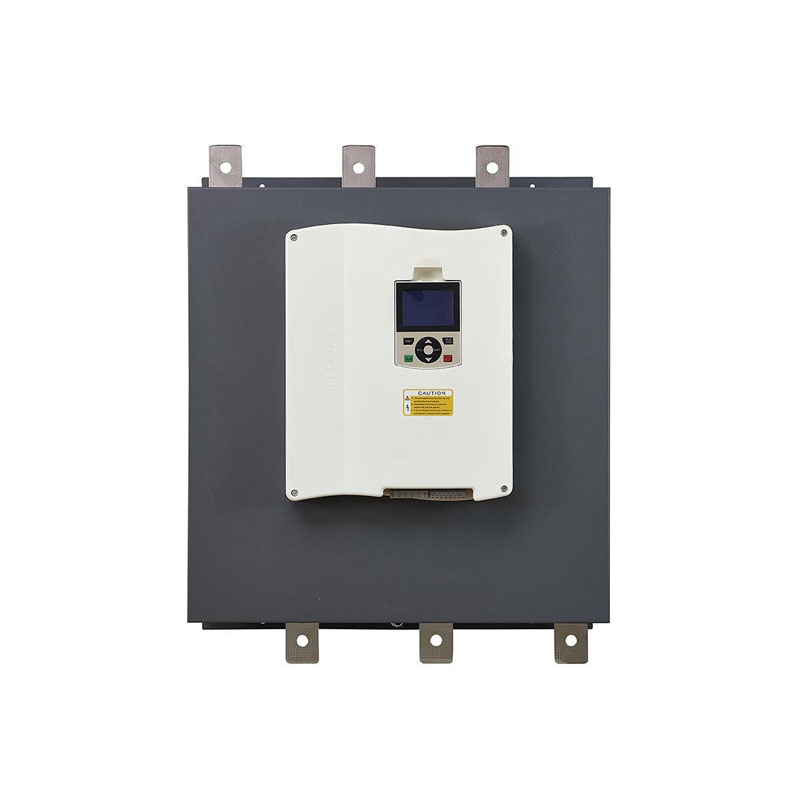

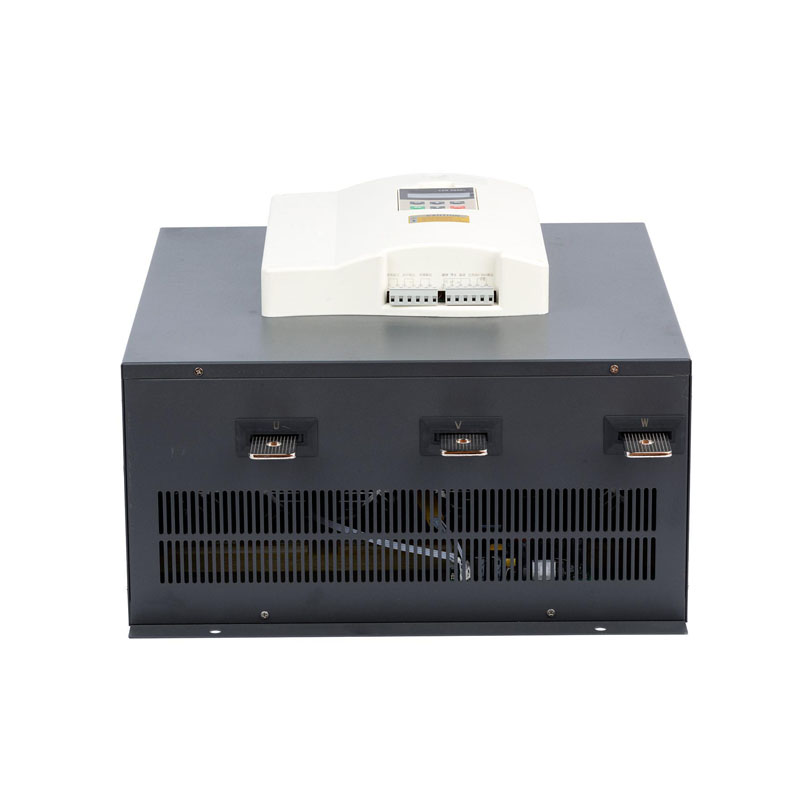

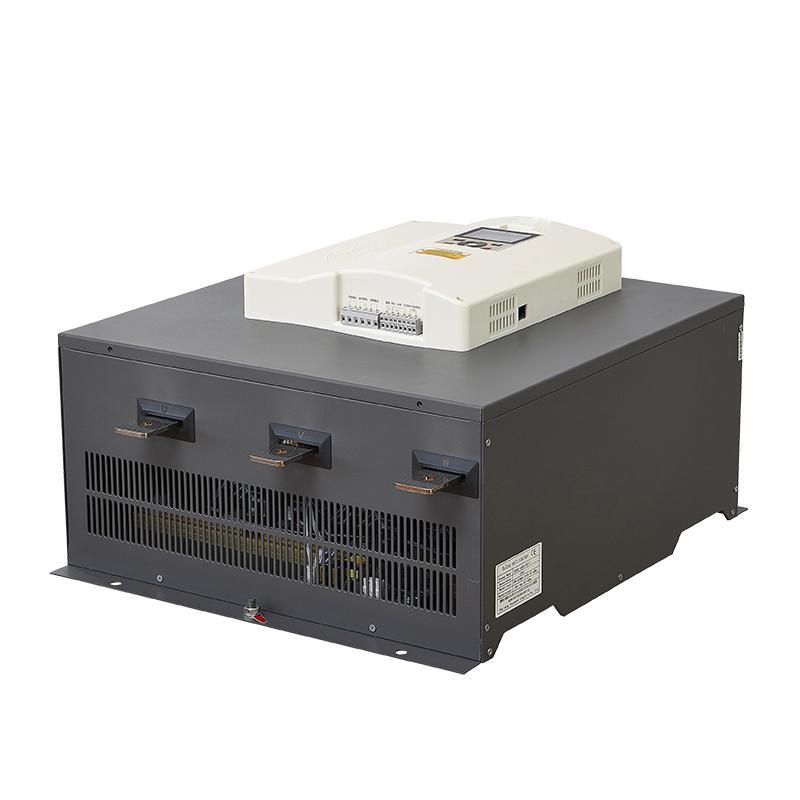

Soft starter appearance and mounting dimensions
