Rogowski Coil Current Sensor with Smarter Current Monitoring

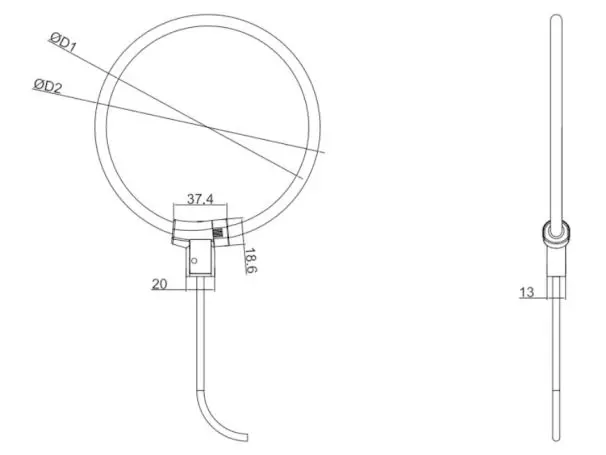

Product Structure

Key Product Features & Benefits

Non-Contact, Clamp-On Measurement

This Rogowski Coil Current Sensor with Smarter Current Monitoring enables safe and convenient installation around live conductors without breaking the circuit. Ideal for temporary diagnostics or permanent monitoring with minimal downtime.

Air-Core Design (No Magnetic Saturation)

Eliminates the risk of magnetic saturation, ensuring high linearity and accuracy even when measuring extremely high or distorted currents. This results in a compact, lightweight sensor.

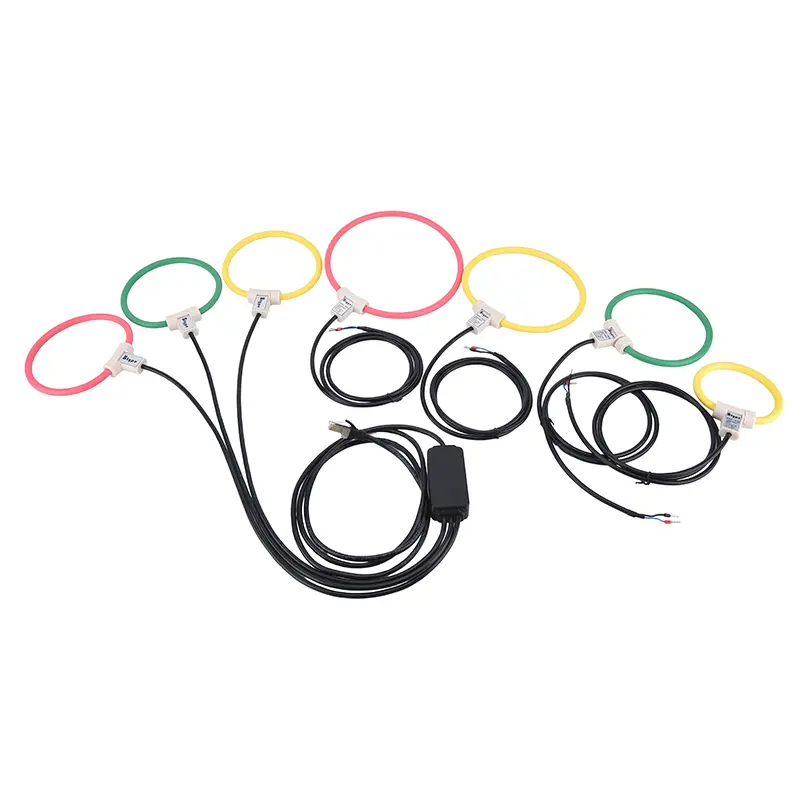

Flexible & Rigid Configurations

Flexible Coils: Offer customizable lengths/perimeters for easy installation on irregular or large bus bars, cables in tight spaces, or retrofitting existing systems.

Rigid Coils: Provide enhanced mechanical stability and higher precision for low-current, low-frequency applications or standard mounting setups.

High Accuracy & Ultra-Wide Bandwidth

Delivers typically higher accuracy than traditional CTs across an exceptionally wide frequency response (from a few Hz to several MHz). Capable of capturing fast transients, harmonics, and pulse currents with fidelity.

Robust Environmental Durability

This Rogowski Coil Current Sensor with Smarter Current Monitoring engineered with waterproof (IP-rated), dustproof, and UV-resistant housings. Suitable for reliable operation in harsh outdoor or industrial environments.

Integrated or External Signal Conditioning

The coil’s output is inherently a differentiated signal. It requires an integrator circuit (often provided as a matching integrator unit or built into read-out devices) to convert it into a standard, linear current or voltage signal for accurate readout by meters, oscilloscopes, or data acquisition systems.
