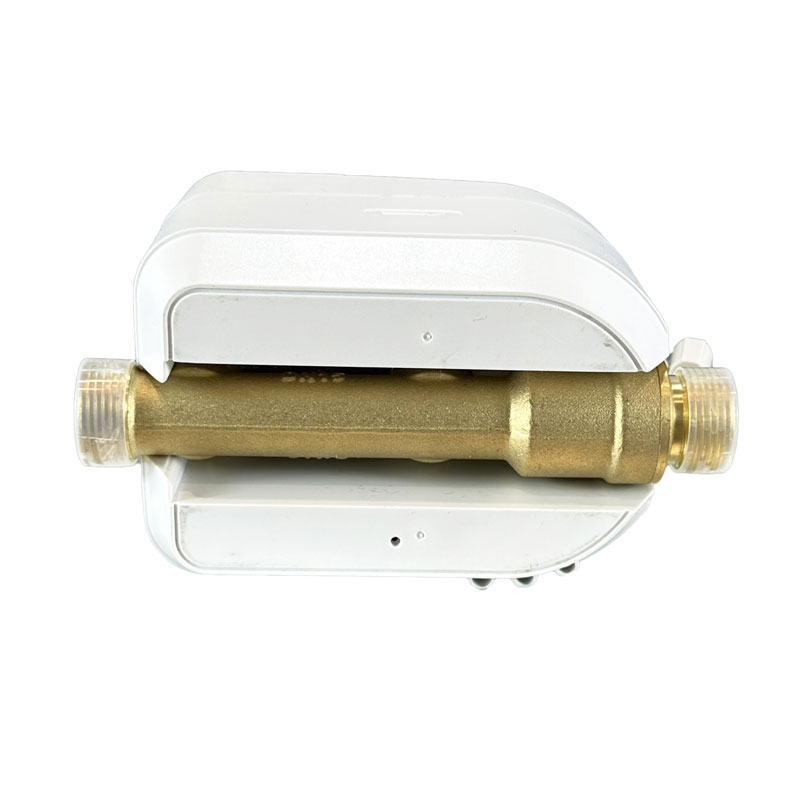

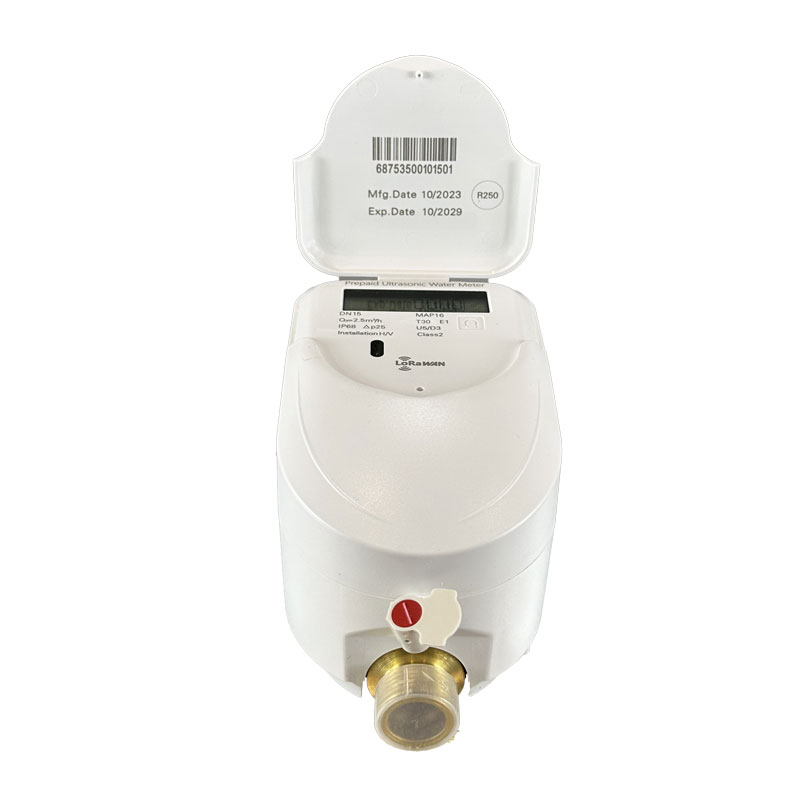

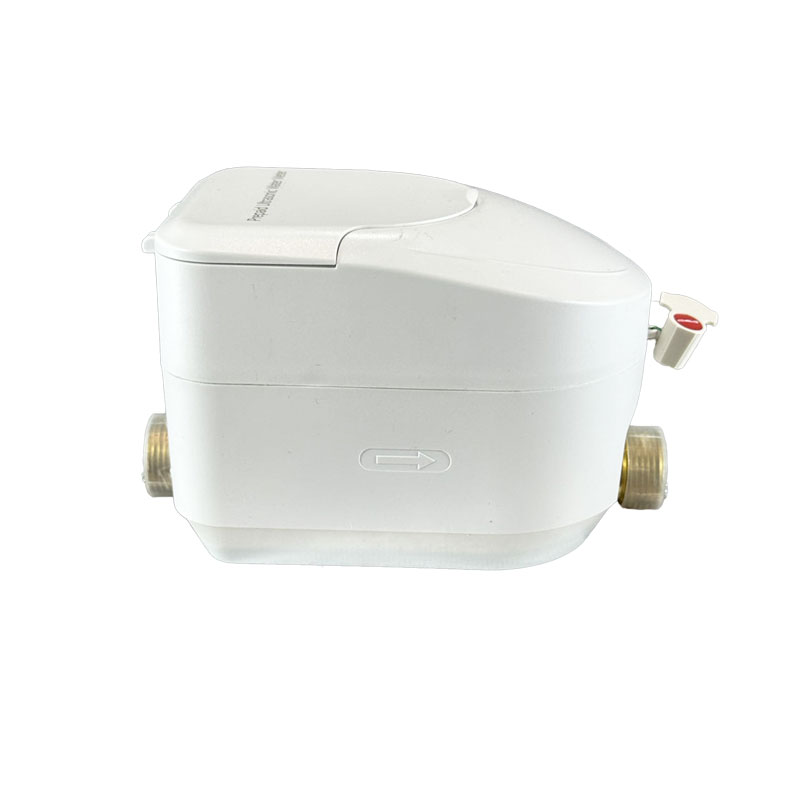

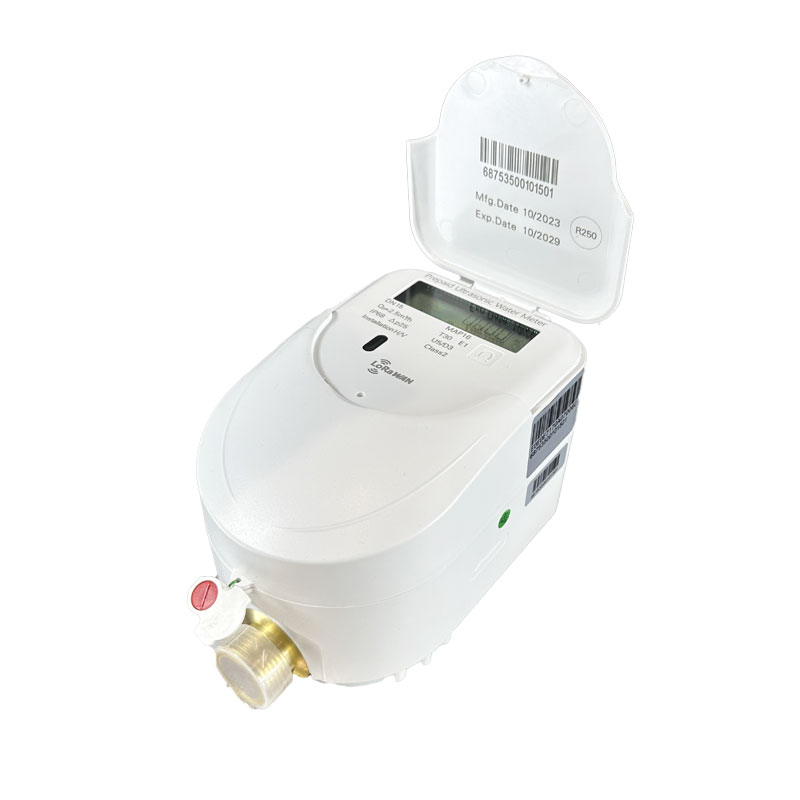

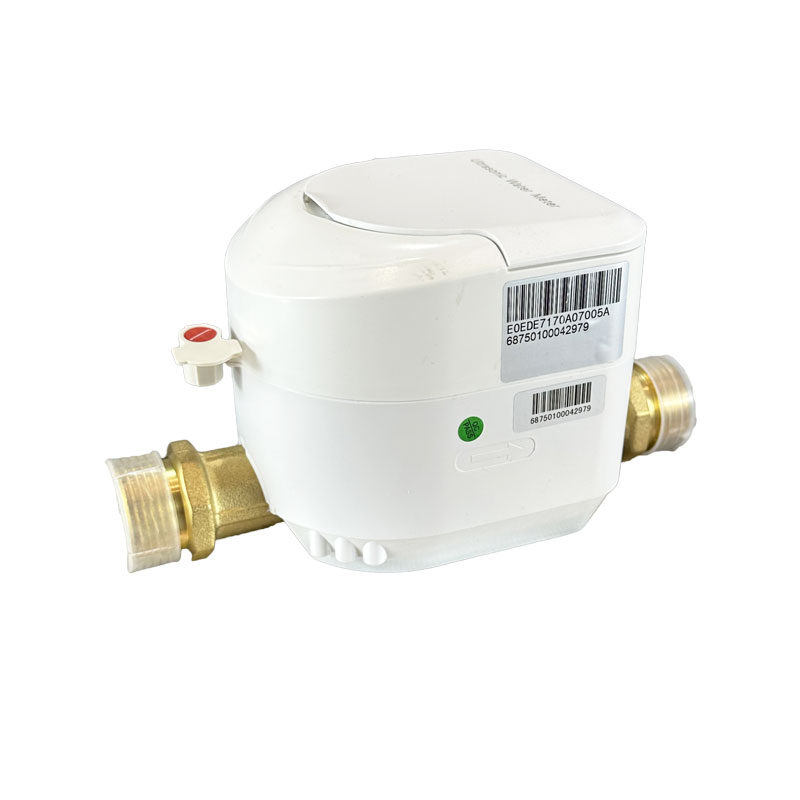

Xinkong Ultrasonic Household Water Meter.The water meter accurately measures the flow rate by collecting temperature differences and time differences of sound waves passing through the fluid. The data is wirelessly transmitted through a LoRa module, ensuring high measurement accuracy. It is mainly used to measure and monitor the flow rate of water media, such as domestic water, water for central air conditioning systems, and water for equipment networks.
Features
1.LoRa Communication
Uses LoRa spread spectrum technology for wireless transmission with long-range, penetration, and stable signal transmission.
2.Accurate measurement
Uses picosecond-level high-precision chips, with high measurement accuracy, low starting flow rate, and high measurement range, achieving drop-by-drop measurement.
3.Payment modes
Embedded with a 5-level step water price, supporting various payment methods such as platform prepaid, table-end prepaid, and mixed charging.
4.Data storage
Has hourly, daily, monthly, and other periodic data recording functions, including cumulative flow, maximum flow rate, water flow time, minimum temperature, sensor signal strength, etc. Data can be saved for an extended period after a power outage.
5.Remote valve control
Can remotely monitor valve abnormalities and report valve action data to the cloud platform. It can automatically shut off the valve immediately if the payment is overdue. Valve opening and closing cycles can be set to prevent rusting and sticking.
6.Intelligent monitoring
Realizes real-time sound level measurement, transducer abnormal detection, battery low-voltage alarm, empty pipe alarm, backflow alarm, and adaptive adjustment of flow rate anomalies.
7.Ultra-low power consumption
Adopts low-power design, with a built-in high-capacity battery with a lifespan of over 6 years.
8.Technical support
Can support different platforms with protocol docking and interface docking.
9.OTA remote upgrade
All devices support remote online upgrades without the need for replacement, disassembly, or close proximity to the meter.
10.Convenient payment
Supports mobile payments such as WeChat official accounts, Alipay, and mini-programs to query usage, balance, payment, and other information.
Technical Parameter
Accuracy Class | Class 2 |
Range ratio | R160/R250/R400 |
Nominal Diameter | DN15 |
Maximum pressure | 1.6MPa |
Working environment | Class B |
Temperature grade | T30/T50/T90 |
Upstream flow field sensitivity level | U10 |
Downstream flow field sensitivity level | D5 |
Electromagnetic compatibility level | E1 |
Communication interface | LORAWAN |
Power supply | Built-in lithium battery (DC3.6V) |
Protection level | IP68 |
