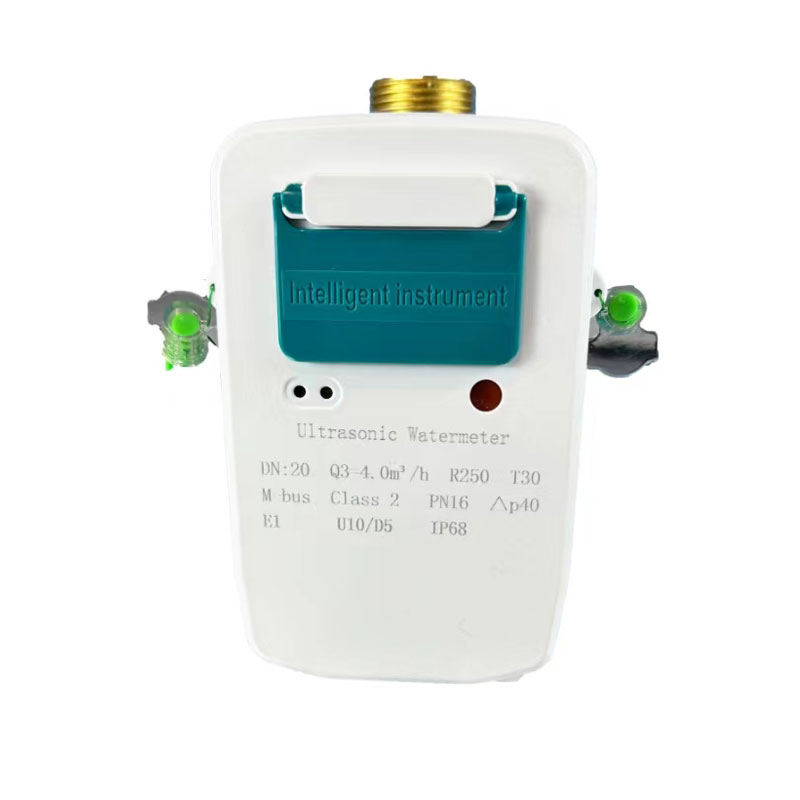

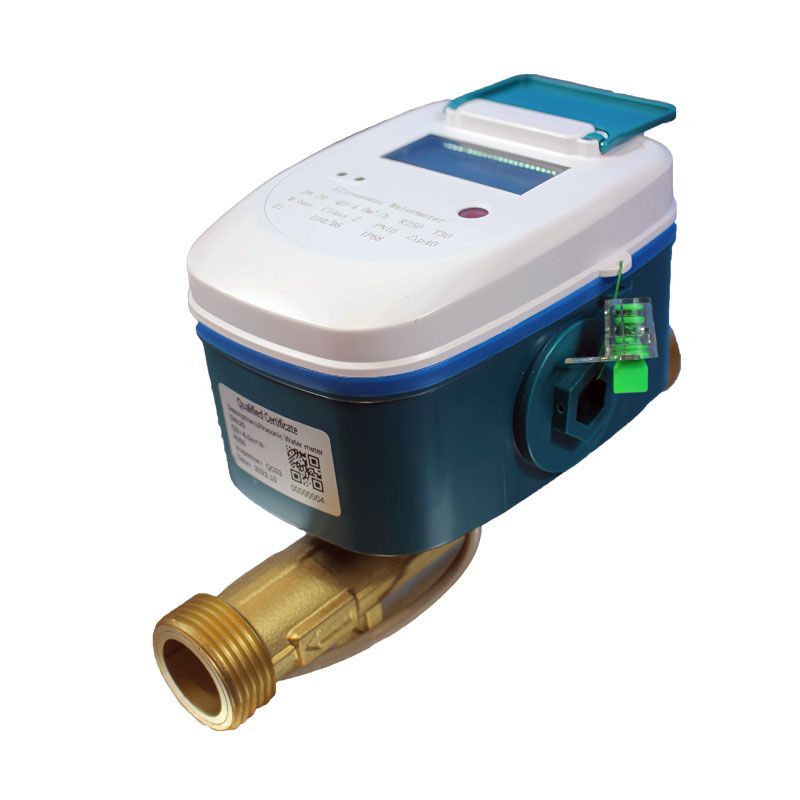

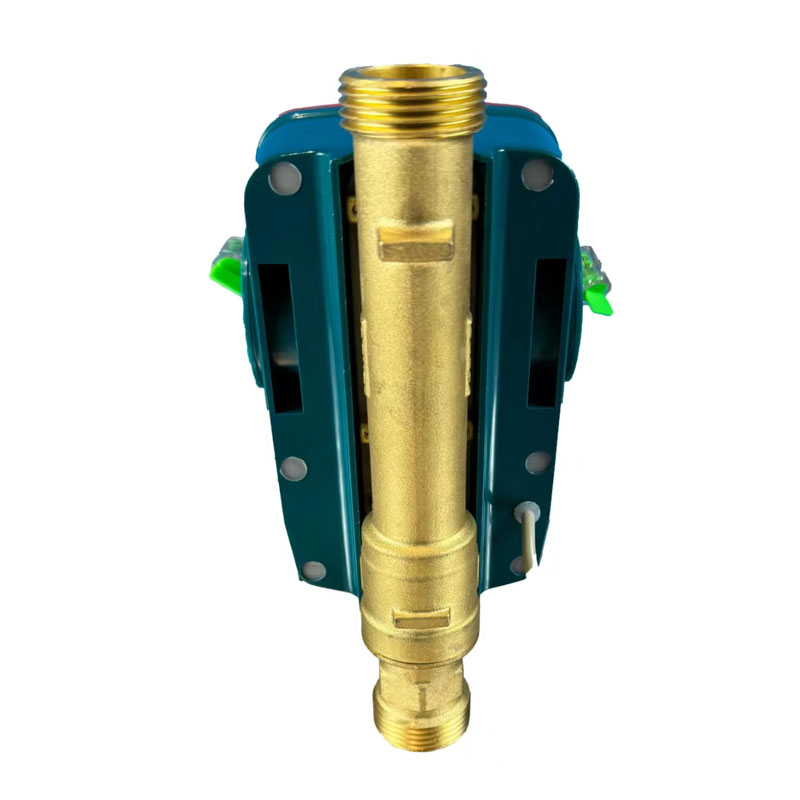

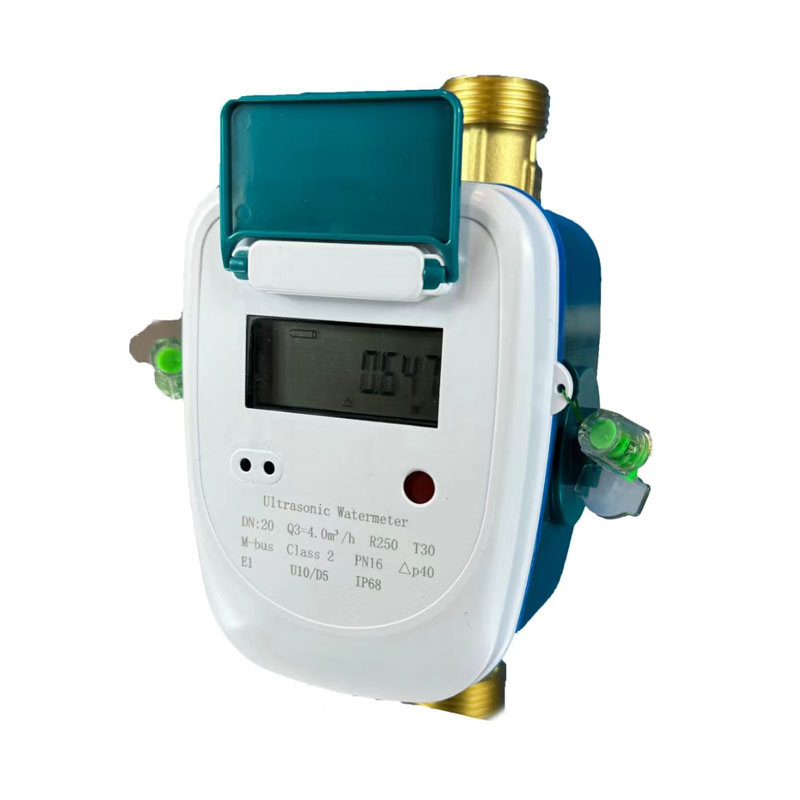

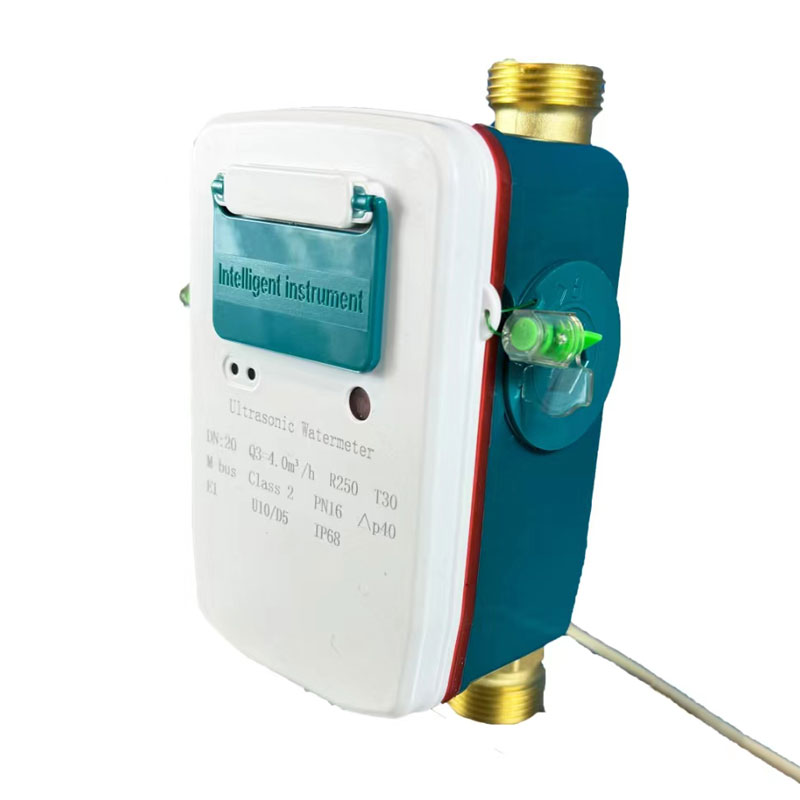

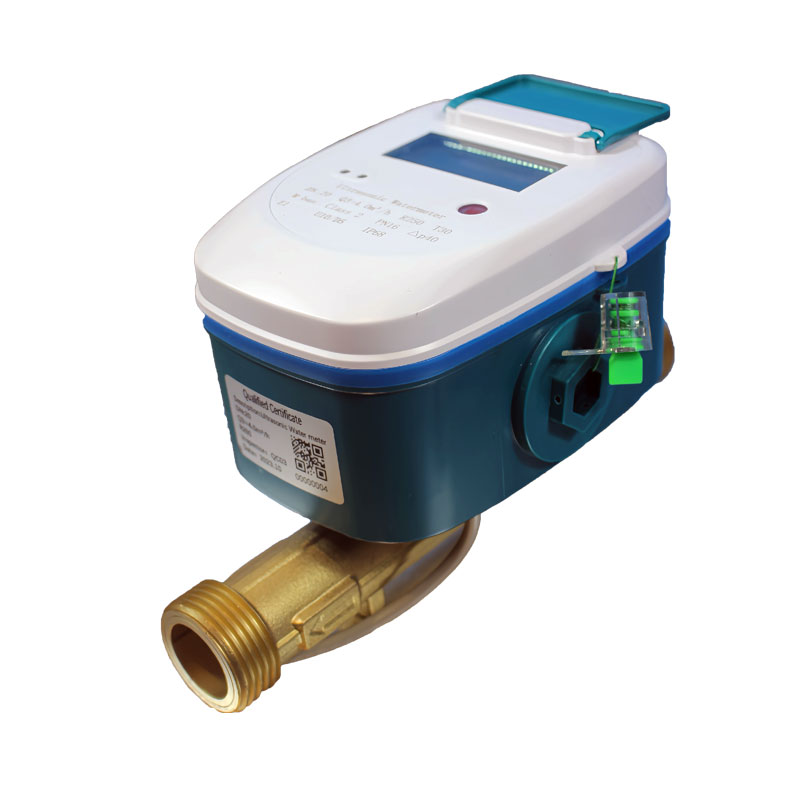

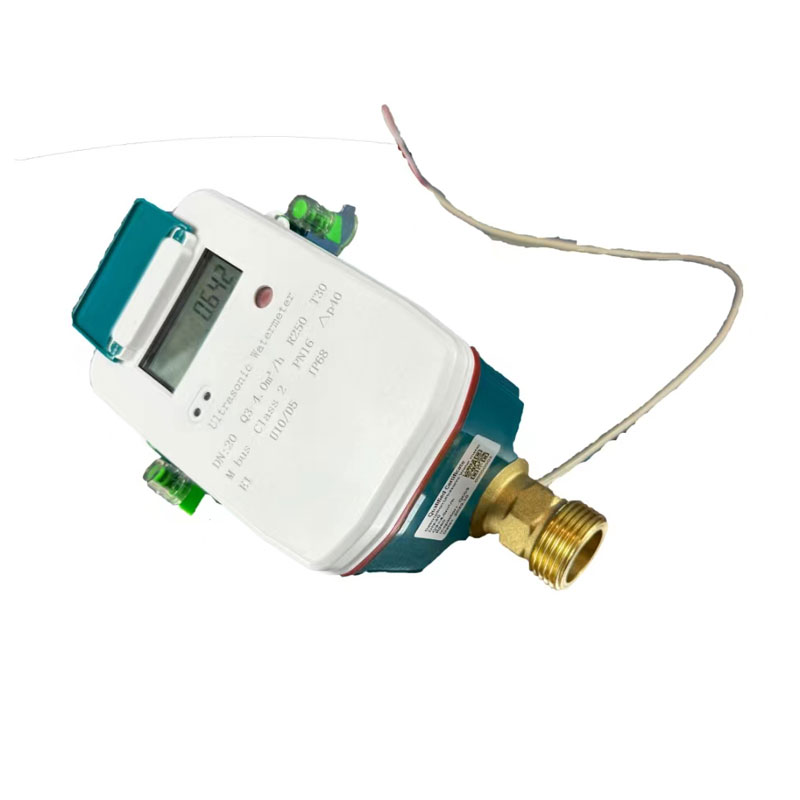

Xinkong Ultrasonic Household Water Meter.THIS Ultrasonic Water Meter is an electronic water meter that calculates the flow rate and water consumption by detecting the time difference generated when the ultrasonic sound beam propagates in the water in both the downstream and upstream directions.
Features
1.Accurate measurement
High-precision chips with picosecond accuracy are used, which ensures high measurement accuracy, low start-up flow rate, and enables the meter to measure even a single drop of water.
2.Payment modes
It is equipped with a 5-level progressive water pricing system that supports various payment methods such as platform prepayment, meter prepayment, and mixed charging.
3.Data storage
It has the functionality of recording hourly, daily, monthly data, including cumulative flow, maximum flow rate, water flow time, minimum temperature, sensor signal strength, etc., and data is preserved even after power outage.
4.Intelligent monitoring
It realizes real-time sound-path measurement, transducer anomaly detection, low battery voltage warning, empty tube warning, reverse flow warning, and flow anomaly adaptive adjustment.
5.Parameter setting
The calibration caliber, range ratio, and baud rate can be customized according to user requirements.
6.Ultra-low power consumption
It is designed with low power consumption and comes with a large-capacity battery, which has a service life of more than 6 years.
7.Technical support
It supports protocol docking and interface docking, which is compatible with different platforms.
8.OTA remote upgrade
All devices support remote online upgrades, which do not require replacement, disassembly, or close proximity to the meter.
9.Convenient payment
It supports mobile payment methods such as WeChat public accounts, Alipay, mini-programs, etc., allowing users to conveniently check usage, balance, and make payments.
Technical Parameter
Nominal Diameter | 25 |
Accuracy Class | Class 2 |
Range ratio | R160/R250/R400 |
Maximum pressure | 1.6MPa |
Working environment | Class B |
Temperature grade | T30/T50/T90 |
Upstream flow field sensitivity level | U10 |
Downstream flow field sensitivity level | D5 |
Electromagnetic compatibility level | E1 |
Communication interface | RS-485/M-BUS |
Power supply | Built-in lithium battery (DC3.6V) |
Protection level | IP68 |
