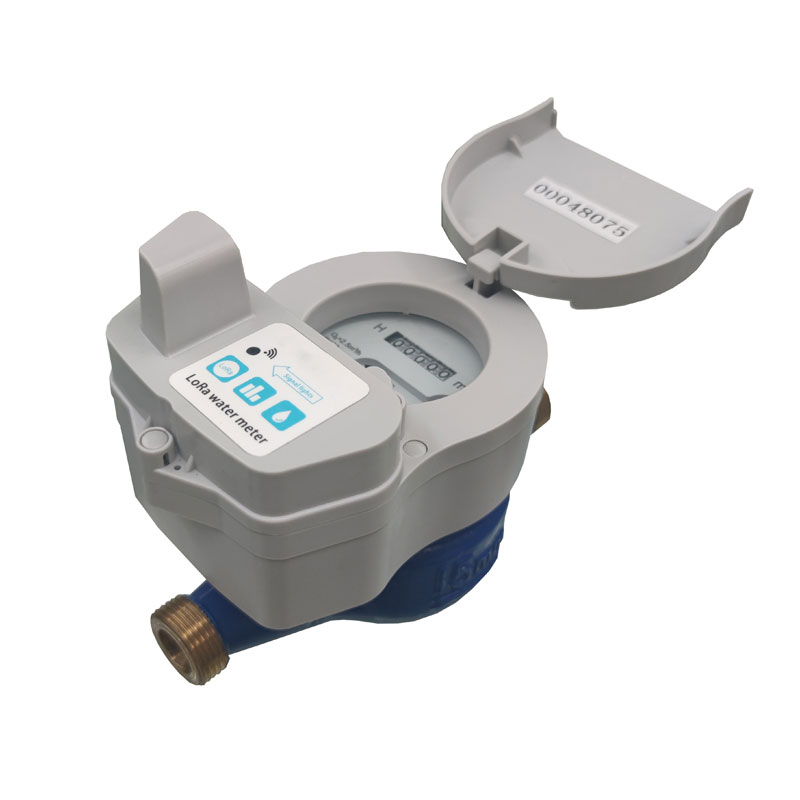

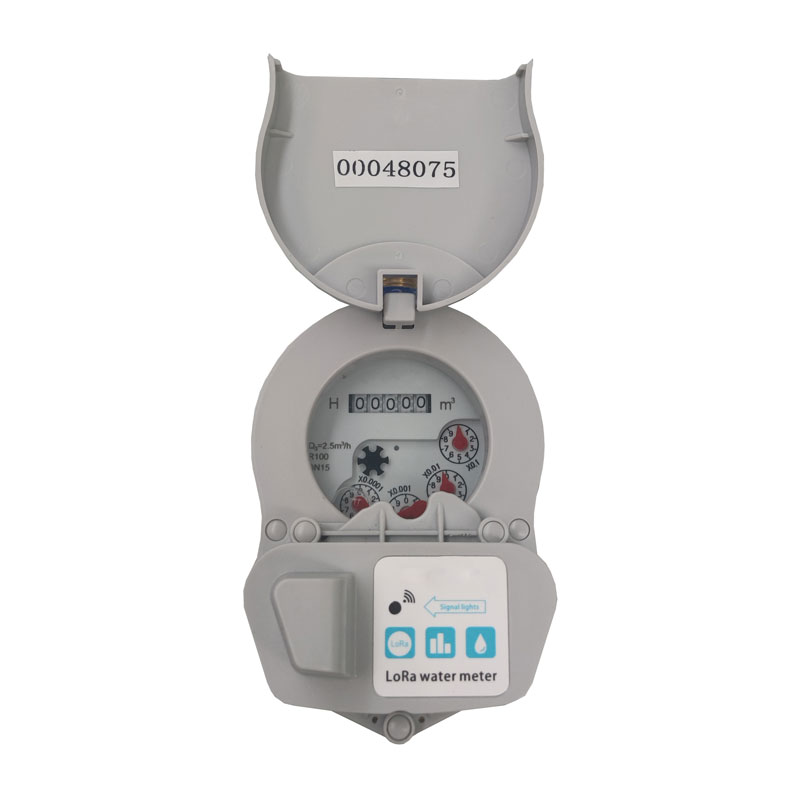

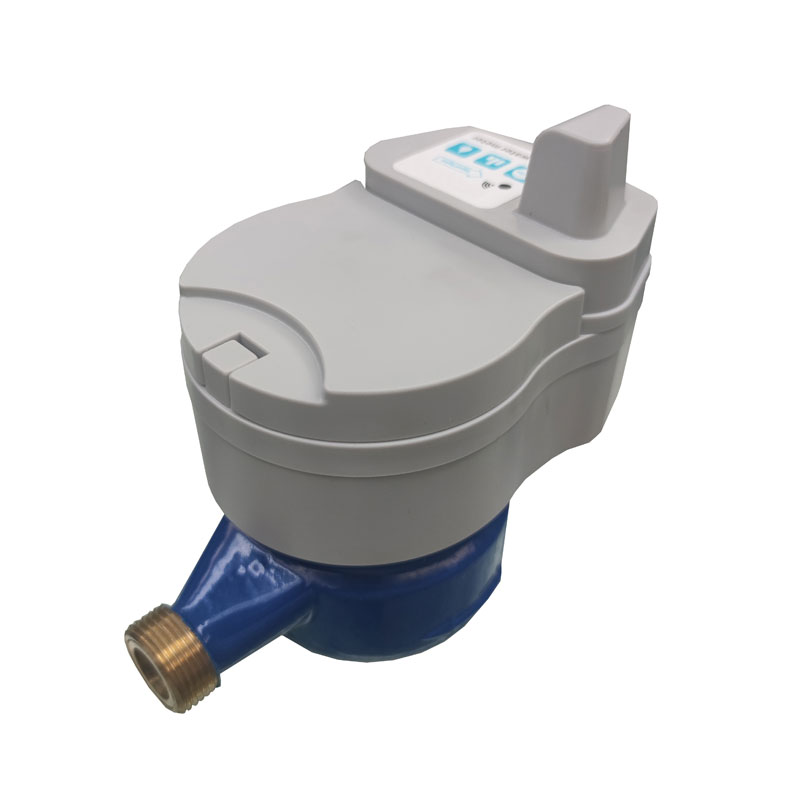

Xinkong Wireless Intelligent Mechanical Water Meter.LoRa wireless water meter is loaded with radio frequency technology and integrated with micro-power multi-channel embedded wireless module to realize wireless data transmission. It can measure and store water consumption and realize remote reading and control. LoRa wireless remote water meter with valve control can also automatically detect the battery status, operation status and other information, and support the ladder water price.
Features
1.Remote reading
The system has the advantages of long communication distance, large system capacity, easy installation and maintenance, low power consumption, high reliability, cost saving and simple operation.
2.Remote valve control
Remote valve closing and opening.
3.Prepayment
Support prepayment and pre-purchase quantity, shut off the valve in arrears.
4.Early warning system
Battery under pressure, metering abnormalities, pre-purchase volume and pre-paid use to reach the threshold and other alarm prompts.
5.Step water price
Water price can be set according to the user category and the amount of different base price and ladder price.
Technical Parameter
Nominal Diameter | DN40 |
Accuracy Class | Class 2 |
Maximum pressure | 1.6MPa |
Working environment | Class B/O |
Temperature grade | T30/T50/T90 |
Upstream flow field sensitivity level | U10 |
Downstream flow field sensitivity level | D5 |
Electromagnetic compatibility level | E1 |
Communication interface | LoRaWAN |
Power supply | Built-in lithium battery (DC3.6V) |
Protection level | IP68 |
