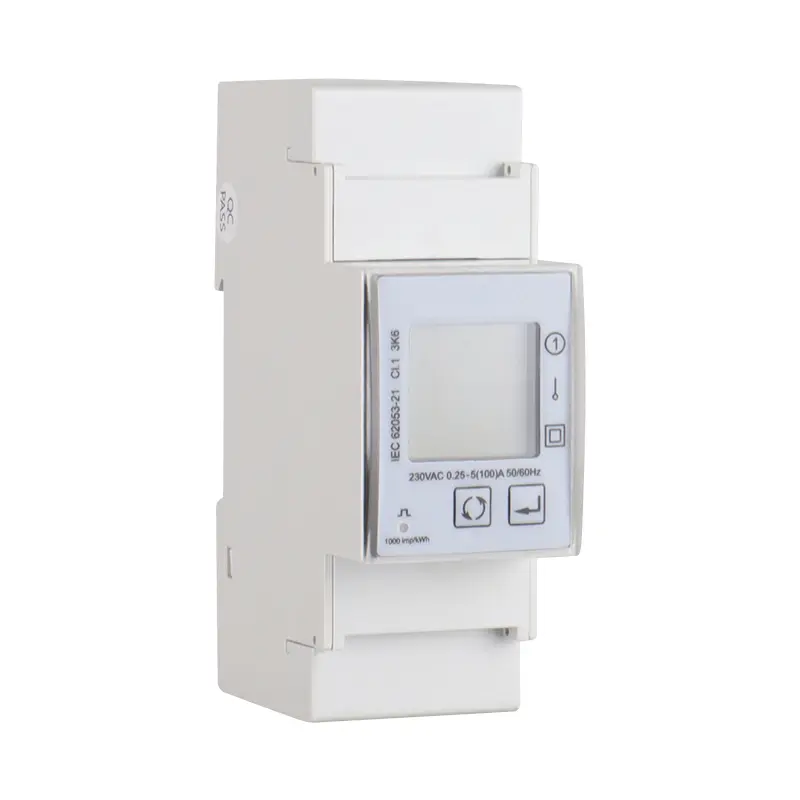

2p Single Phase DIN Rail Energy Smart Meter For Renewable Energy

2P single phase din rail energy smart meter for renewable energy.This products can support a variety of electric parameter measurement analysis, such as voltage, current, the four quadrant power parameters, power factor, etc.Meanwhile they can provide a variety of electrical energy parameters measurement, such as two-way active energy, reactive energy, monthly and daily energy consumption statistics.This series of products also can support the analysis of electric power parameter measurement in one phase two wires grid environment, is suitable for power monitoring for photovoltaic inverter ,new energy electricity consumption statistic analysis,real time power monitoring and a variety of other environments, has the multi-function, high stability and long life characteristics.This series of products with RS485 communication interface, baud rate maximum support 38400bps, supporting Modbus communication protocols. It can easily realize the function of remote data read, and adopt the design of large-screen LCD and touch-sensitive key, which can easily carry out the local view and set operation of various parameters. The product has the function of password protection, which ensures the data security of the product.

2P single phase din rail energy smart meter for renewable energy. are multi-functional electric energy meters designed for electric energy monitoring of photovoltaic inverter, statistical analysis of new energy electricity consumption, power monitoring needs of power system utilities and intelligent buildings. Its complete communication function is very suitable for various control systems, SCADA systems and energy management systems.

Characteristics

➢ Maximum current 100A direct access

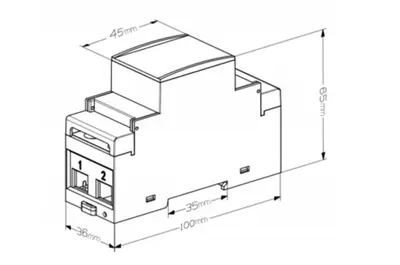

➢ DIN Rail mounting, standard 2 modulus width.

➢ Multi-function parameter measurement, providing voltage, current, active power, reactive

power, apparent power, power factor, phase Angle, etc.

➢ Provide a variety of statistical data and local storage functions, such as two-way power,

demand and other statistical data. Provide monthly electricity consumption statistics for the

last 12 months and daily electricity consumption statistics for the last 31 days

➢ supports the dual-timing function of the meter startup running time and load running time.

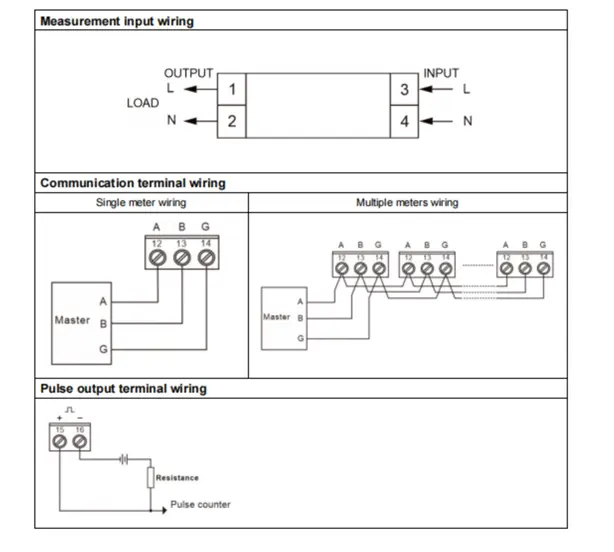

➢ Support RS485 communication function, baud rate up to 38400bps, support Modbus RTU.

➢ Supports one optocoupler pulse output interface, and output parameters can be set.

➢ LCD refresh time is 1 second, support manual or automatic scroll display (configurable)
